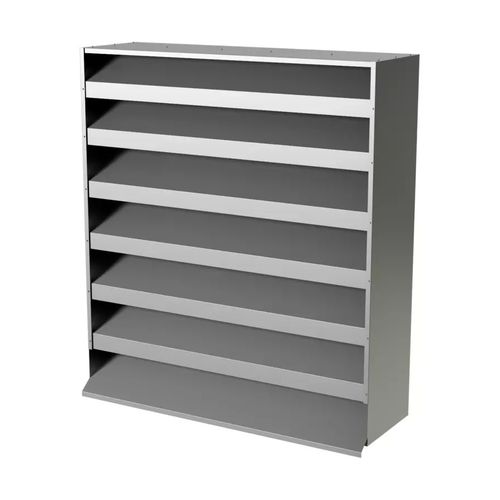

Galvanised steel ventilation grill ALD

aluminiumstainless steelrectangular

Overview
ALD – Sound attenuating exterior wall grille designed to reduce noise from fans and plant rooms.

Key features

• Very good sound attenuation across octave bands
• Robust grille construction suitable for demanding climatic conditions
• Standard materials: galvanised sheet steel (Corrosivity class C3) or aluminium (Corrosivity class C4)
• Optional materials/finishes: stainless steel, alu-zinc or painted finish
• Available in double design for extra sound attenuation
• Included in the MagiCAD database

Product description
The ALD acoustic louvre reduces airborne noise originating from plant rooms, fans and machinery. Sound is attenuated as it passes through absorbent baffle vanes filled with sound-attenuating material, providing effective exterior noise control.

Design
Sound attenuation is achieved by aerodynamically profiled, sound-absorbing baffle vanes arranged within the grille. The design provides efficient airflow while reducing transmitted noise from mechanical equipment.

Material and surface treatment
The ALD is supplied in galvanised sheet steel (Corrosivity class C3) or aluminium (Corrosivity class C4). The acoustic baffle vanes are filled with ISOVER Cleantec® PLUS. Surface treatment with paint is available where corrosion protection is required.

Installation, commissioning and maintenance
The grille is supplied as standard without installation accessories. Common installation methods include:

• Screws through the end walls of the grille
• External flange mounting
• Internal flange mounting (the double model is supplied as two single grilles for on-site assembly)

Performance (static integral attenuation to ISO 7235)
Static integral attenuation dB (ISO 7235) by type and octave band:
ALD-1 / Widths (mm): 400, 600, 750, 900, 1050, 1200, 1350, 1500, 1650, 1800, 1950, 2100, 2250, 2400 / Heights (mm): 450, 600, 750, 900, 1050, 1200, 1350, 1500, 1650, 1800, 1950, 2100, 2250, 2400 / 63 Hz: 2 / 125 Hz: 5 / 250 Hz: 7 / 500 Hz: 12 / 1K Hz: 18 / 2K Hz: 21 / 4K Hz: 16 / 8K Hz: 16
ALD-2 / Widths (mm): 400, 600, 750, 900, 1050, 1200, 1350, 1500, 1650, 1800, 1950, 2100, 2250, 2400 / Heights (mm): 450, 600, 750, 900, 1050, 1200, 1350, 1500, 1650, 1800, 1950, 2100, 2250, 2400 / 63 Hz: 3 / 125 Hz: 9 / 250 Hz: 12 / 500 Hz: 21 / 1K Hz: 32 / 2K Hz: 34 / 4K Hz: 32 / 8K Hz: 32

Technical specifications

• Product family: ALD (sound attenuating exterior wall grille)
• Models: ALD-1 and ALD-2
• Available widths (mm): 400–2400 (series)
• Available heights (mm): 450–2400 (series)
• Static integral attenuation (dB, ISO 7235): see performance values above
• Standard materials: galvanised sheet steel (Corrosivity class C3) or aluminium (Corrosivity class C4)
• Acoustic filling: ISOVER Cleantec® PLUS
• Optional materials/finishes: stainless steel, alu-zinc, painted finishes
• Double design option available for increased attenuation
• Included in MagiCAD database
