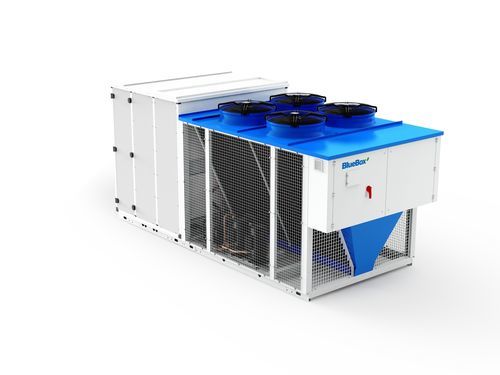

Packaged air conditioner LAMBDA SKYfloorcommercialreversible
Add to favorites
Compare this product
Characteristics
- Installation
- floor
- Type
- packaged
- Sector
- commercial
- Function
- reversible
- Other characteristics
- inverter, R32
- Exterior unit height
1,925 mm, 2,375 mm
(75.79 in, 93.5 in)- Exterior unit width
2,427 mm, 4,317 mm
(95.55 in, 169.96 in)- Exterior unit depth
2,250 mm
(88.58 in)
Description
Overview
Rooftop packaged air-conditioning unit designed for large indoor spaces, providing cooling-only or reversible heat-pump operation with low-GWP refrigerant.
Summary
Packaged rooftop unit, cooling only or heat pump, scroll compressors, refrigerant R32, capacity range 20 - 300 kW; variable-capacity control with inverter and multiple configuration options.
Key features
Documents available
Technical specifications
Rooftop packaged air-conditioning unit designed for large indoor spaces, providing cooling-only or reversible heat-pump operation with low-GWP refrigerant.
Summary
Packaged rooftop unit, cooling only or heat pump, scroll compressors, refrigerant R32, capacity range 20 - 300 kW; variable-capacity control with inverter and multiple configuration options.
Key features
- Variable-capacity control with inverter compatible with R32 to optimize seasonal performance
- Variable airflow capability to avoid conditioning unnecessary air and maximize energy efficiency
- Modular availability: five main configurations and a range of accessories for application-specific adaptation
- Active thermodynamic heat recovery (standard on 3-damper units) to reduce fresh-air heating/cooling loads
Documents available
- Brochure (product brochure available)
- Product sheet (technical catalogue available)
- BlueBox Product Overview (overview brochure)
Technical specifications
- Product family / model name: LAMBDA Sky
- Type: Packaged rooftop unit (roof-top version)
- Operating modes: Cooling only or heat pump (reversible)
- Compressors: Scroll compressors
- Refrigerant: R32 (low GWP)
- Capacity range: 20 - 300 kW
- Control: Variable capacity with inverter
- Airflow: Variable airflow capability to avoid treating unneeded air and maximize energy savings
- Heat recovery: Active thermodynamic heat recovery (standard on 3-damper units)
- Configurations: Available in 5 configurations and multiple accessories for various applications
