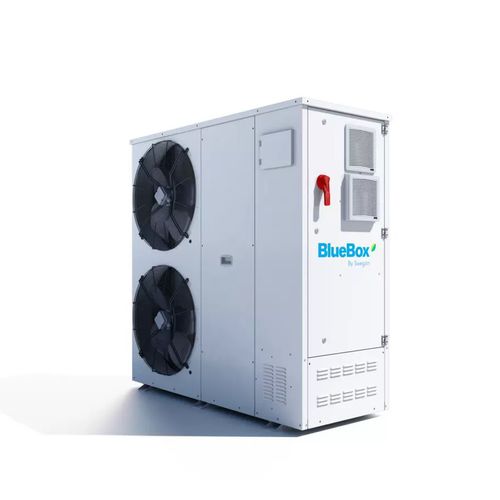

Air source heat pump GEYSER SKY R0

air/watercommercialoutdoor

Product overview
Range of reversible heat pumps featuring variable speed scroll compressors with extended operating range. Nominal power range indicated on site: 20–30 kW.

Category
Air-cooled chillers and heat pumps — Heating & Cooling production.

Configurations

• Hi HP: Reversible heat pump version, with inverter compressor
• /SLN: super low-noise unit

Strengths / Key features

• Refrigerant R290 (propane) – GWP = 3; natural refrigerant
• Reduced refrigerant charge
• Extended operating limits — suitable as a solution to replace boilers
• Domestic hot water managed via a 3-way valve, either built-in or external
• Production of hot water up to 78°C
• Operation down to ambient -20°C with outlet water up to +60°C
• 4.3-inch touchscreen interface

Accessories

• INSIDE Connect — communication unit for mobile remote access to intelligent climate systems

Certificates & Environmental documentation

• Eurovent certification listed
• Environmental Product Declarations (EPD) available per model variant
• BlueBox Product Overview brochure referenced

Documentation (examples listed on product page)

• Product brochure (multilingual brochure specific to GEYSER Sky R0)
• Product sheet / Technical catalogue (GEYSER Sky R0 product sheet)
• EPD (Environmental Product Declaration) files for specific nominal sizes (20 / 25 / 30)

Characteristics / technical specifications

• Commercial name: GEYSER Sky R0
• Denomination / model: GEYSER Sky R0
• Power range (site reference): approx. 20–30 kW (multiple nominal sizes: 20 / 25 / 30)
• Type: Reversible air-cooled heat pump (heat pump and chiller capability depending on configuration)
• Compressors: Variable speed scroll compressors (inverter)
• Refrigerant: R290 (propane), GWP = 3
• Domestic hot water: Managed via 3-way valve (built-in or external option)
• Hot water production: up to 78°C
• Operating ambient range: down to -20°C with outlet water up to +60°C
• Interface: 4.3-inch touchscreen
• Noise option: /SLN = super low-noise unit
• Connectivity option: INSIDE Connect (communication unit for mobile remote access)
• Certifications / environmental: Eurovent listed; EPD files available for size variants
• Typical applications: Replacement of boilers, heating & cooling production in buildings
