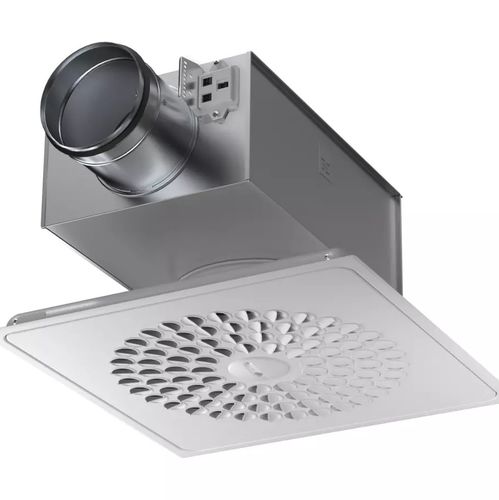

Ceiling-mounted air diffuser WISE COLIBRI

for ceilingsquaregalvanised steel

Short description

• Active air diffuser for Swegon’s WISE System for demand-controlled ventilation

Key features

• Variable or constant flow regulation
• Wireless communication via radio
• Integrated sensor
• Fast and simple installation and maintenance with the Quick Access function
• May be adapted to a variety of suspended ceiling systems with the adjustment frame ADAPTER
• Variants: Connection Ø160 or Ø250

Product description

• Designed for demand-controlled ventilation of premises with a varying load
• Designed for comfort ventilation
• Moist, cold and aggressive environments must be avoided
• Designed for supply air systems
• Pressure-independent, but does require a minimum pressure drop equivalent to that of an open damper
• The minimum air flow must be considered during design

Design

• Integrated air flow sensor
• Integrated duct temperature sensor
• Integrated room temperature sensor
• Integrated presence sensor
• Integrated LED
• Possibility to connect up to 3 valve actuators
• Connection: Ø160 or Ø250
• Always supplied with commissioning box and dust protection
• The air diffuser has Quick Access
• Aerodynamic designed nozzles
• Square dimensions 595x595 mm, easy to fit in cassette suspended ceilings with modular measurement 600x600 mm

Material and surface treatment

• Air diffuser: Connection spigot made of galvanized sheet steel (Z275); other metal parts are powder coated sheet steel; standard finish RAL 9003 (signal white), gloss 40; air nozzles made of PP plastic (polypropylene)
• Commissioning box: All sheet-metal parts are galvanized sheet steel (Z275); internal sound-absorbing material made of PET (polyethylene terephthalate), fire rating B-s1,d0

Technical data (AIR FLOW - SOUND LEVEL - COOLING CAPACITY)
Size | Min l/s | Min m3/h | 50 Pa l/s | 50 Pa m3/h | P Δt=8K W | 150 Pa l/s | 150 Pa m3/h | P Δt=8K W
160 | 5 | 18 | 72 | 260 | 694 | 75 | 270 | 772
250 | 10 | 36 | 105 | 378 | 1011 | 120 | 432 | 1156

Notes

• *The product can regulate below Min. but the measurement accuracy cannot be guaranteed; see the product sheet for tolerances. Note: for a high pressure drop across the product, it may be difficult to reach the min. flow; see the sizing diagrams in the product sheet.

Caractéristiques / spécifications techniques

• Product name: WISE Colibri Ceiling
• Function: Active air diffuser for demand-controlled ventilation
• Flow regulation: Variable or constant
• Communication: Wireless (radio)
• Integrated sensors: air flow, duct temperature, room temperature, presence
• Indicators: Integrated LED
• Actuator connections: Up to 3 valve actuators can be connected
• Connections (duct): Ø160 or Ø250
• Diffuser outer dimensions: 595 x 595 mm (fits 600 x 600 mm cassette ceilings)
• Materials: galvanized sheet steel spigot (Z275), powder coated sheet steel parts, PP plastic nozzles
• Finish: RAL 9003 (signal white), gloss 40
• Commissioning box: galvanized sheet metal; internal PET sound absorber (fire rating B-s1,d0)
• Installation: Quick Access for simplified installation and maintenance
• Environmental: Not suitable for moist, cold or aggressive environments
• Designed for: supply air systems; pressure-independent with required minimum pressure drop
