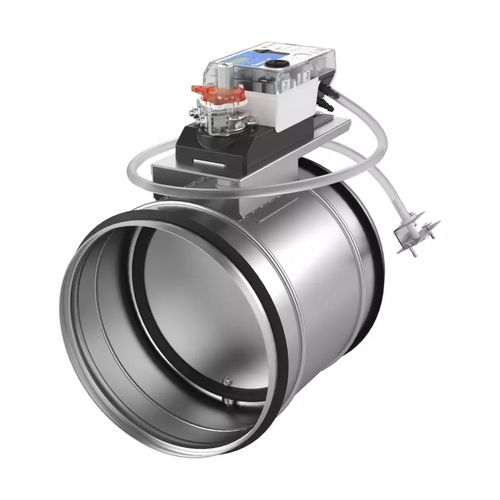

Metal ventilation damper REACT Pfor building
Add to favorites
Compare this product
Characteristics
- Material
- metal
- Other characteristics
- for building
Description
Overview
Function
Variant
Product details
Technical specifications
- Pressure regulation damper for comfort ventilation systems (supply and extract).
- Pressure measurement up to 300 Pa; recommended regulation range 20–290 Pa.
- Quick access to readings via controller display and rapid parameter setting.
- Available with analogue controls or Modbus communication.
- Can be insulated to prevent condensation in the duct system.
Function
- Maintains setpoint duct pressure to ensure stable comfort ventilation.
Variant
- Circular and rectangular variants with multiple connection sizes.
Product details
- Designed for pressure control in comfort ventilation applications.
- Suitable for installation in both supply and extract air ducts.
- Pressure-dependent operation; recommended minimum duct pressure: 20 Pa.
- Avoid installation in moist, freezing or chemically aggressive environments.
Technical specifications
- Pressure measurement range: up to 300 Pa; recommended regulation area: 20–290 Pa.
- Recommended minimum duct pressure: 20 Pa (pressure dependent).
- Control and interaction: analogue controls or Modbus; rapid access to readings via controller display and quick parameter setting.
- Condensation: can be insulated within the duct system.
- Variants and connection sizes:
- Circular connections: Ø100–630 mm
- Rectangular connections: 200×200 – 1400×700 mm
