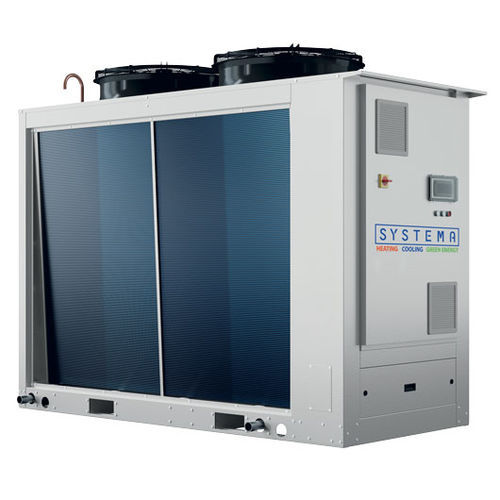

Air/water heat pump SHP

air/water heat pump
air/water heat pump
Add to favorites
Compare this product


Interior/exterior unit
inverter, reversible
Class A+
Heat output

Max.: 186 kW

Min.: 33 kW

Cooling power

Max.: 163.8 kW

Min.: 29.1 kW

Noise level

50 dB, 68 dB, 70 dB, 76 dB, 78 dB

Exterior unit height

1,900 mm
(75 in)

Exterior unit width

1,050 mm, 2,100 mm
(41 in, 83 in)

Exterior unit depth

1,750 mm, 2,400 mm, 3,190 mm, 3,200 mm, 4,090 mm
(69 in, 94 in, 126 in, 126 in, 161 in)


Global warming and the progressive need to reduce CO2 and HFC emissions are forcing us to make conscious choices with a view to the future.. Our vision and commitment to sustainability have led us to greater ecological responsibility, proposing new products that use natural and low-GWP refrigerants such as R290 propane, a refrigerant gas that becomes fundamental in the econenergy development project and integrated in our SHP heat pumps. consistent with international goals and agreements to make a more sustainable future possible. SHP heat pumps are designed for outdoor installation, the external panels are painted with polyester powders to guarantee total resistance to atmospheric agents, while the base and frame are in galvanised sheet steel. Silenced versions are also available thanks to sandwich panels insulated with rock wool. The compressor is managed by a semi-hermetic reciprocating INVERTER, the inverter allows the compressor capacity to be adapted to the heating or cooling demand, as well as being mechanically optimised for use with hydrocarbons. The electrical panel is built according to IEC 204-1/EN60204-1 standards and is complete with: main disconnect switch, door lock safety device, contactor and compressor protection, the minimum electrical protection rating is IP54 and to guarantee further safety, it is separated from the rest of the machine and positioned on the external side of the unit, furthermore the propane gas sensor (R290) is equipped with a dedicated external power supply for constant monitoring of any leaks.
