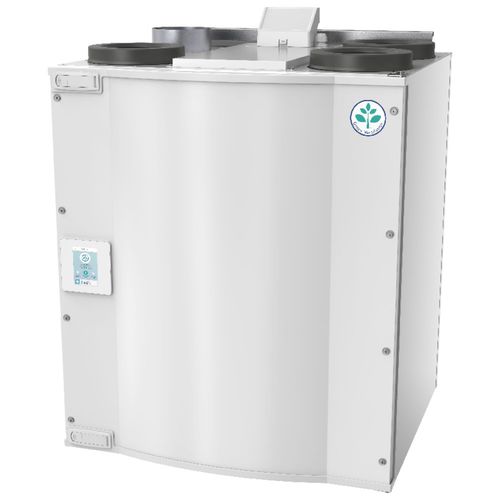

Heat exchanger SAVE SERIES

Main features: • High energy-efficiency counter flow heat exchanger with EC - technology fans • Demand control regulation with the built-in humidity sensor • Automatic defrosting • SAVE Touch control with a touch display and Startup Wizard for easy commissioning • Connection board for easy access and connection of accessories • Modbus communication RS-485 as standard • Internet access module is available as accessory The SAVE VTC 200 is designed for installation on the wall and preferably installed in a secondary room, for example a storeroom or laundry room. The SAVE VTC 200 is designed for applications up to approx. 180 m². Left and right handed models are available. The casing is built of sheet metal and well insulated against condensation. The inner part of the case is made of expanded polypropylene (EPP) and provides extremely good insulation in terms of noise and heat loss. All components can be easily removed for maintenance and service. The unit is equipped with a high efficiency counter flow heat exchanger. Energy efficient fans with EC motors as well as low-pressure filters reduce the energy consumptions and gives low SFP factor (Specific Fan Power) and low sound. The built in humidity sensor in extract air can be used for demand control. All settings and features are accessible via the SAVE Touch control panel which is integrated in the front door. The panel is a color touch screen with a user friendly interface. The option for connecting one or more external control panels is available. In addition, control panel has separate user level for authorized installers and service personnel.
