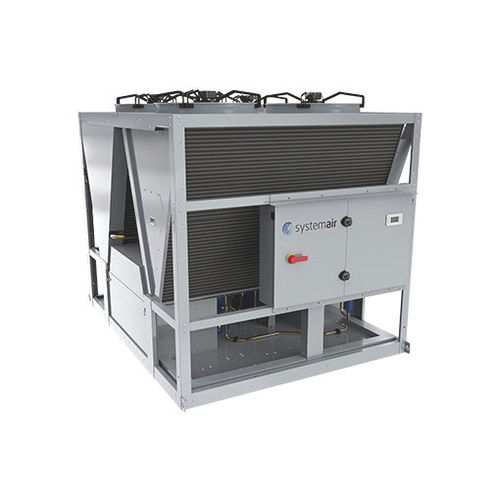

SYSAQUA Air Cooled Chillers have been designed to operate with R410A refrigerant and under high temperatures, up to 50 °C.
The units have very high SEER and are already compliant with the ErP 2021 regulation
The SysAqua range is distinguished also by very low sound levels.
The range at a glance
· 5 sizes (140, 150, 170, 190, 210)
· Cooling capacity from 134 to 208,8 kW
· EER up to 3,03
· SEER up to 4,40
· Operating range : from -10°C to +50°C outdoor air temperature
· LWT from -10°C to +18°C
Product advantages
· Very high performances → ErP 2021 ready
· Extra low noise units
· Wide operating limits
Min outdoor ambient temperature → -10 [°C]
Max outdoor ambient temperature → +50 [°C]
· Easy maintenance → great accessibility to the internal components
· Low footprint
· “Plug & Play” hydraulic kits
· Remotely controllable with ACloud
· Leak detection according to BREEAM standard
· Precise selection on SysoftAC.com
· Eurovent certified
Equipment
· The evaporator is consisting of a stainless steel plate heat exchanger insulated with closed cell synthetic foam.
· Two refrigerant circuits with tandem scroll compressors for a higher efficiency at partial load
· Hydraulic circuit without pump - (including a not mounted water filter)
· Modbus RTU communication protocol
· ACloud : Cloud connection
· “Night mode” for energy savings and reduced sound levels
· Double water set point
· Return and leaving water temperature control
