Polystyrene ventilation grill BOREA

roundindoorhome

Overview

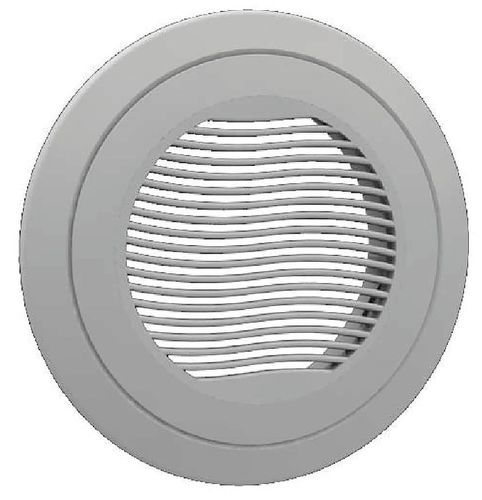

The Borea is designed to control and direct airflow in supply or extract installations. It fits directly into DN125 ductwork (pipe or collar) and is suitable for ceiling or wall mounting. An adjustable front grille allows regulation and directional supply when used in supply mode.

Features

• Versatile installation: for ceiling or wall mounting.
• Adjustable front grille for flow regulation and directional control.
• Targeted airflow when used in supply mode.
• Direct push-fit installation into DN125 pipe or DN125 collar.
• Compatible with an in-duct air volume controller.
• Construction: white polystyrene body with plate lock and front grille.
• Sealed push-fit for airtight installation.

Installation guidance

• Supply (blowing) mode: maintain a clearance of at least 3 × duct diameter from the Borea for correct performance.
• Extract mode: maintain a clearance of at least 1 × duct diameter from the Borea.

Benefits

• Quick direct installation into DN125 ductwork with sealing for airtightness.
• Adjustable grille enables easy regulation and direction of airflow to improve comfort and control.
• Suitable for a wide range of applications and mounting positions (ceiling or wall).

Technical specifications

• Model name: Borea
• Product type: Ceiling / wall air valve (supply air valve)
• Material: white polystyrene
• Compatible duct size: DN125 (push-fit into DN125 pipe or DN125 collar)
• Components: body, plate lock, front grille
• Optional: compatible with an in-duct air volume controller
• Installation clearances: supply (blowing) mode ≥ 3 × diameter; extract mode ≥ 1 × diameter
• Function: adjustable front grille for flow regulation and targeted airflow
