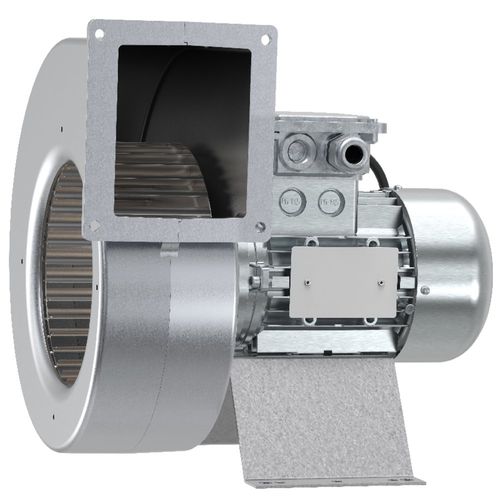

Extractor fan EX SERIES

centrifugalductindustrial

Compact, explosion-proof solution for ventilation of battery charging and industrial facilities Explosion proof fan certified according to ATEX 2014/34/EU Compact and robust design Easy to install in any position (mounting brackets included) EX fan designed for use in battery-charging rooms, fume cupboards and other demanding environments where explosive atmospheres can occur. The fan combines a compact design highly resistant to environmental stressors with a reliable ATEX rated AC motor. EX fan supplied with preinstalled mounting brackets and premounted terminal box which simplifies installation process on site. Connection kit (accessory) allows to simplify connection to the standard circular ducts. The EX series is classified as II 2 G Ex db eb h IIB+H₂ T4 Gb. That means it could be used for hazardous areas within zone 1 and 2 extracting gases and mixes of groups IIA, IIB and also hydrogen (H₂), temperature class T1, T2, T3 and T4. The casing of EX fans is made from casted silumin alloy. Terminal box integrated to the motor enclosure. Mounting brackets made of galvanized sheet still connected to the motor. Single phase version of the fan is also completed with capacitor. EX fans have integrated PTC (Positive Temperature Coefficient) protective circuits with external leads for connection to a motor protection device (separate accessory). We recommend to use UEK230E motor protection, certified according to ATEX directive 2014/34/EU. Fan can be installed in any position by using preinstalled mounting brackets. In case of installation to the circular duct system we recommend to use dedicated connection kit (additional accessory).
