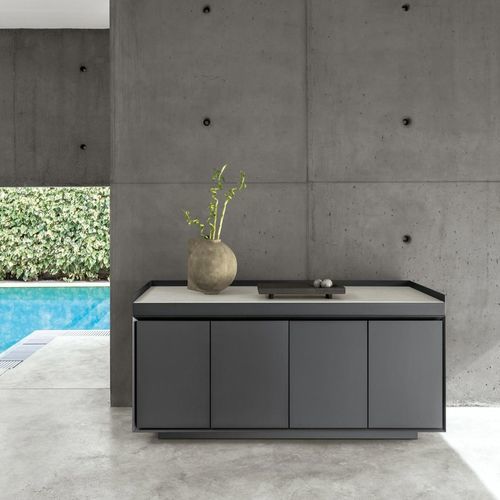

Free-standing kitchen unit TIKAL MADIA

for outdoor kitchen

Tikal Madia is a modular outdoor kitchen unit designed for outdoor living and for integrating kitchen modules and appliances with a gres worktop and configurable door finishes. The system is conceived for professionals seeking customised outdoor kitchen compositions combining functional modules and architectural finishes.

Available modules

• Sink module: Stainless steel AISI 304 undermount sink (Foster), brushed finish, single basin 340 x 400 mm; single‑lever mixer with flat swivel spout; 3/8” female connection hoses. Module dimensions 800 x 600 x 250 h — weight 37 kg.
• Induction hob module: 4 cooking zones 1800/3000 W; maximum input power adjustable on 5 levels (2.8 kW / 3.5 kW / 4.5 kW / 5.8 kW / 7 kW); booster function; 2 bridge zones; 4 mm black glass‑ceramic. Module dimensions 800 x 600 x 250 h — weight 39 kg.
• Barbecue module: Aluminium/stainless steel structure with black RAL 9004 high‑temperature textured paint; total gas burners 6 kW with Fire Core irradiation system for even surface temperature; includes two 2 kW burners. Module dimensions 800 x 600 x 250 h — weight 52 kg.
• Neutral countertop module: Neutral module with 9 mm thick gres top (concrete effect). Module dimensions 800 x 600 x 250 h — weight 34 kg.

Materials and finishes

• Frame: Magnesit (steel treated with zinc and magnesium, and aluminium).
• Top: Gres (porcelain stoneware) available in concrete effect and other finishes.
• Door finishes: Magnesit or Accoya wood stained natural teak; moodboard options include magnesit black, magnesit black + Accoya, magnesit white and magnesit white + Accoya.

Technical specifications

• Collection: Tikal
• Product type: Outdoor kitchen unit
• Designer: Nicola De Pellegrini
• Main unit weight: 130 kg
• Stackable: no
• Packaging: 1 pc
• Cover: available
• Dimensions (main unit): Width 160 cm; Depth 60 cm; Height 74 cm
• Frame material: Magnesit (steel + zinc/magnesium treatment, aluminium)
• Finish: Black RAL 9004 high‑temperature textured paint
• Doors: 4 swing doors with recessed groove handles, 125° quick‑release opening and Blumotion soft‑close
• Top: Gres (porcelain stoneware)
• Catalog: Kitchen
