CONCEPT

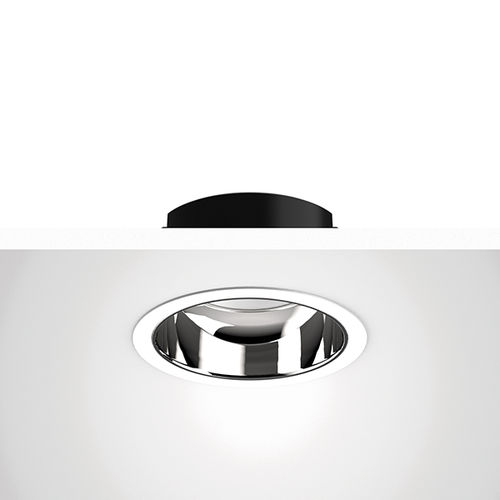

Recessed LED Downlight in a trim or trimless version.
MATERIALS
Die-cast black painted anodised aluminium heat sink. Reflective metallised thermoplastic material reflector with high luminous efficiency and visual comfort. Silicone sealing kit for water and dust protection. Available in a trim version with an integrated black or white ring or a trimless version with a load-bearing element for installation and finishing in plasterboard.
SOURCE
High efficiency Ra90 LED Chip on Board. LED Chip on Board Tunable White Ra90.
OPTIC
Two different optics: low luminance deep UGR for high visual comfort and VWFL for wide coverage with excellent uniformity of luminance. UGR Optic: composed of a deep thermoplastic reflector with reflective metallisation and a protective anti-scratch coating, a holographic acrylic diffuser screen and a highly reflective white thermoplastic internal recuperator. UGR<19 and L65<1000 cd/m² (EN 12464-1). VWFL Optic: with high luminous efficiency composed of a deep thermoplastic reflector with reflective metallisation and a protective anti-scratch coating, a holographic acrylic diffuser screen and a highly reflective white thermoplastic internal recuperator. IP54 protection for the visible parts of the installed fixture.
INSTALLATION
Quick tool-free mounting system for false ceiling installation from 0.5 to 30mm.
POWER SUPPLY
Integrated electronic or DALI driver for the standard version; integrated DT8 or Casambi driver for the Tunable White version. 220-240Vac 50/60Hz
