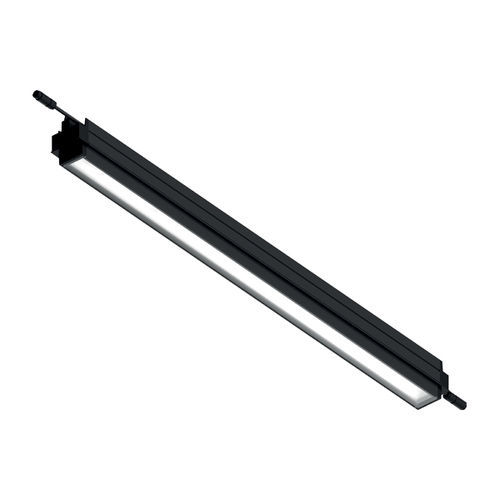

Wall lighting profile IVY

integratedLEDcommercial

CONCEPT Linear LED light module, powered at low voltage, to be installed into the installation profile. MATERIAL Extruded aluminium body protected with a layer of black anodization with a minimum thickness of 15µ. Side enclosure caps in thermoplastic polymer. Extra clear 4mm thick glass flat screen. Lighting module of 885mm length. SOURCE High Power High Efficiency Ra90 linear LED board. OPTIC Available in 4 different versions: Grazing, Flood, Wall Washer e Opal. Grazing, Flood, Wall Washer and Opal versions: internal optical system made of a primary cylindrical lens in PMMA, high reflectance specular reflector and integrated holographic diffusive filter. Opal version: internal optical system made of a MC-PET high reflectance white reflector and double holographic diffusive filter. INSTALLATION Fast connection system of the modules through anodized aluminium clips. Free positining all over the installion profile according to installation needs with mechanical lock through Hex Key. Designed for connection in series through H05RN-F (0.15m + 0.15m) cable completed with male/female miniaturised IP65 connectors. Wall Washer version: designed for connection in series through H05RN-F (0.15m + 0.15m) cable completed with female/female miniaturised IP65 connectors. NOTES Electronic ON-OFF versions or with integrated Casambi control system (Casambi Ready) available. DALI control system available using a special accessory (only for Casambi version products). Wall Washer version: complete with male/male connection kit to allow light emission in both directions.
