Stainless steel linear shower drain TECELINEO

low-maintenancedurableeasy cleaning

Overview

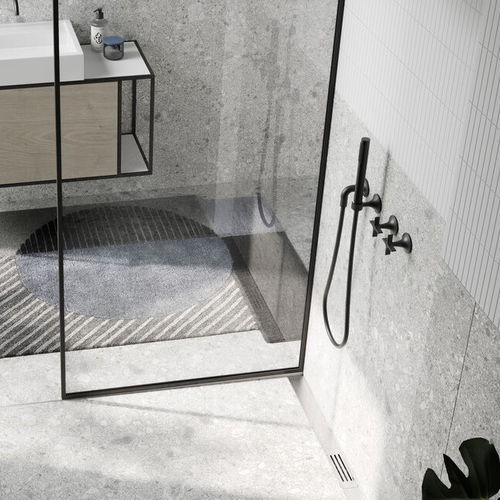

The TECElineo shower channel set is a full-width stainless steel drainage solution designed for flush, minimalist shower floors. It provides unobstructed water flow without internal corners or edges, ensuring efficient drainage and a clean visual integration into contemporary bathroom designs.

Full-width design
A simple, continuous profile that integrates with various design concepts and leaves a smooth visual impression along the shower width.

Smooth water drainage
The internal geometry eliminates sharp corners and edges that slow water flow, optimising drainage performance and improving hygiene by reducing residue buildup.

Complete TECElineo shower channel set
Delivered as a complete set including the stainless steel profile, drain components and a sealing sleeve for the composite seal, ready for professional installation.

Self-cleaning inner gradient
The channel's internal gradient enhances flow velocity to produce a self-cleaning effect, minimising cleaning effort and preventing standing water.

Low-maintenance stainless steel
Durable stainless steel surface that is cleaned simply by rinsing and wiping with a cloth; the immersion pipe with membrane odour trap is removable for maintenance.

Adjustment options
Alignment/parallelism adjustment relative to the wall and height adjustment designed for tile thickness of 8–18 mm (including tile adhesive) to ensure accurate flush finishes.

Design freedom & length modification
The stainless steel profile has a standard length of 1000 mm and can be shortened from both ends down to a minimum of 400 mm to match shower dimensions and avoid visible tile fragments at the sides.

Hinged flange for wall installation
The drain flange is designed for flush mounting and can be positioned directly against wall coverings from 10 mm (including tile adhesive), enabling neat junctions with adjacent surfaces.

Sealing sleeve included
A sealing sleeve is supplied in the set to create the required composite seal for tiled wetroom installations.

Installation support
The manufacturer provides an installation video demonstrating assembly and fitting procedures for professional installers.

Technical specifications

• Product family / model: TECElineo
• Material: stainless steel profile
• Design: full-width shower channel; no internal corners/edges
• Self-cleaning inner gradient to optimise drainage and avoid puddles
• Maintenance: removable immersion pipe with membrane odour trap; clean with rinse and a cloth
• Height adjustment for tile thickness: 8–18 mm (incl. tile adhesive)
• Wall-compatible installation: drain can be flush-mounted and positioned directly on wall coverings from 10 mm (incl. tile adhesive)
• Profile length & modification: standard 1000 mm; can be shortened on both sides to a minimum of 400 mm
• Sealing: sealing sleeve included for composite seal
• Accessories / set: shower channel set (includes sealing sleeve and drain components)
