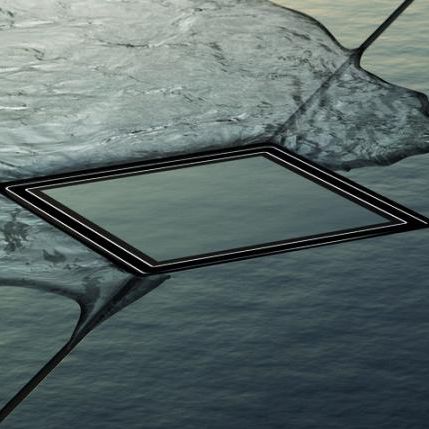

Stainless steel floor drain TECEDRAINPOINT S

for showersquare

TECEdrainpoint S is a point drainage system for the bathroom, basement and terrace. The exceptional feature of the range: every drain has a universal flange. As a result, one and the same drain can be used for liquid and strip composite seals and clamped flange connections. For the secure and permanent connection to composite seals, a fleece is injected onto the flange. As a result even vertical drain bodies and drains of size DN 70 and DN 100 can be installed directly in the composite seal without an additional raising element. In the case of clamped flange connections with bitumen sealing strips, the compression ring made of stainless steel is simply screwed onto the universal flange that clamps the sealing strip to the drain. Complete drain systems: It doesn't get any simpler! Six drain sets are available for the most common applications Modular system: All drains, drain tops and covers can be combined with one another any way you want Standardised Seal System universal flange. Just one flange design for liquid and strip composite seals or clamped flange connections Clamped flange connections Composite seal (large) and vertical drain and clamped flange (small) The streamlined alternative to confusing "complete ranges" The range designed as a modular system offers the possibility of combining from all components to produce a drain to meet the respective requirements. Furthermore, there are complete drain sets for the most common requirements.
