Contemporary ceiling light 700CLR24

sculpturalbrasscrystal

Description

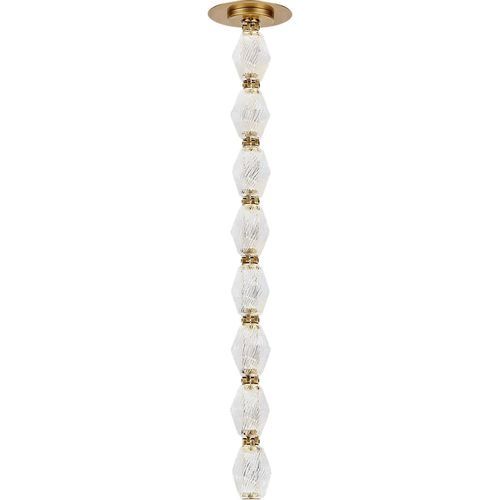

The Collier 700CLR24 pendant pairs solid faceted Czech crystal with integrated LED modules connected by engineered natural brass connectors. Multiple strand lengths allow extensive customization to create sculptural lighting compositions. Remote- or surface-mounted driver options are available. Patent pending.

Available finishes & options

• Finishes: Polished Nickel, Natural Brass, Dark Bronze
• Color temperatures: 2700K, 3000K
• Installation types / driver: Remote (remote driver), Surface (surface mounted driver)
• Voltage options: 120V, 277V, 120–277V Universal
• Series: Collier
• Designer: Sean Lavin
• Category: Ceiling - Pendant
• Rating: Indoor Damp - Outdoor Under Cover

Performance & dimming

• Integrated LED modules: 10.1 W per module; ~544 delivered lumens per module (per listed configuration)
• CRI: 90
• Available CCT: 2700K or 3000K
• Remote models dimmable with most LED-compatible ELV and TRIAC dimmers
• 277V models dimmable with 0–10V dimmers
• Surface models dimmable with ELV, TRIAC and 0–10V dimmers

Technical resources (available)

• Spec sheet (Collier 24 Pendant)
• Technical spec (TS_700CLR24...)
• Installation guide
• SketchUp, Revit and IES files

Technical specifications

• Model / commercial designation: 700CLR24
• Designer: Sean Lavin
• Series: Collier
• Construction: Solid faceted Czech crystal; solid brass connectors
• LED: Integrated modules included (10.1 W, ~544 delivered lumens per listed module configuration)
• CRI: 90
• Color temperature: 2700K or 3000K
• Dimming compatibility: Remote — ELV & TRIAC; Surface — ELV, TRIAC & 0–10V; 277V — 0–10V
• Mounting: Ceiling Direct
• Height (typical variant): 26.2" (other variants listed with 29.3" as noted per SKU)
• Width: 2"
• Length (tech length): 2"
• Wire length: 6 (unit as provided)
• Bulb: Integrated LED included
• ADA Compliant: No
• Rating: Indoor Damp - Outdoor Under Cover
• Available finishes: Polished Nickel (PN), Natural Brass (NB), Dark Bronze (BZ)
• SKU examples: 700CLR24BZ-LED927R, 700CLR24N-LED927R, 700CLR24NB-LED930R (variant-specific suffixes indicate finish/CCT/voltage/installation)
