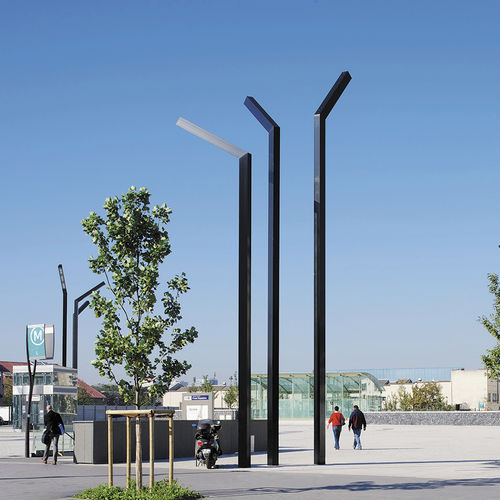

Technilum’s icon Mikado has become a must have in qualitative urban projects. Reknowned for its unique trapezoidal profile, it can be arranged in alignments or in cluster. Made of extruded aluminum, entirely weld-free (City Module concept) Mikado is available in different heights, to suit all illumination configurations.
Mast
Exclusive trapezoidal aluminum profile with internal structure.
Mast profile: Trapeze GM
Profile dimension: 302 x 258 x 200 mm (11 7/8″ x 10 3/16″ x 7 7/8″)
Access door made from a specific aluminum profile. Flush, interchangeable. Opening (19 11/16″ x 3 15/16″) at 600 mm (23 5/8″) from the base (other height on demand). Locked with tamper-proof screw.
Baseplate made of die-cast aluminum. Insulating rings on the 4 anchoring oblongs to avoid any contact with galvanized steel bolts. Construction entirely weld-free to eliminate weakness point: the connection pole/base plate is realized thanks to a two-part epoxy adhesive.
Arm(s)
Simple. Removable. One piece, made in the same section of the pole, offering perfect harmony. Profile end plug made of aluminum alloy, cut out with water jet.
Number of arms: 1
Standard outreach: 2.5 m (or 8′ 2 7⁄16″)
Tilt: 0°, 5°, 10°, 15°
Finishing
Polyester powder coating: more than 200 colors available, plus special finish. Natural anodization available.
