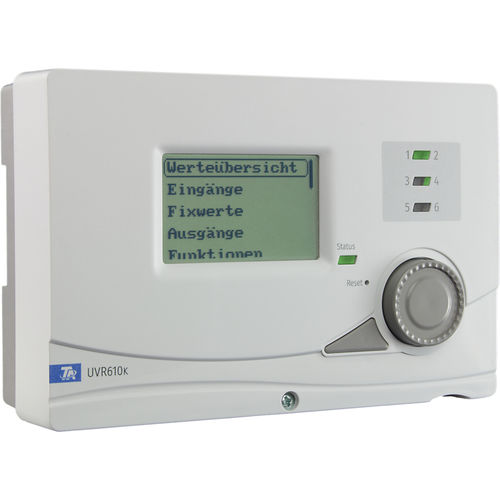

Home automation system control unit UVR610K
for lightingfor ventilation

home automation system control unit
home automation system control unit
Add to favorites
Compare this product


Characteristics

Options
for home automation systems, for lighting, for ventilation

Description

The freely programmable UVR610K universal controller has the same features and interfaces as the UVR610S, but comes in a casing for wall mounting. It is operated in exactly the same way as the UVR610S, and here too, a 24 V output and/or the M-Bus can be activated using jumpers. UVR16x2 with console for wall mounting 24 V output and/or M-Bus interface are available via Jumper Dimensions housing (W x H x D): 150 x 100 x 48.7 mm 6 inputs of the types: PT1000, KTY(1kΩ, 2kΩ), PT100, PT500, Ni1000TK5000, Ni1000, NTC, room sensor, radiation sensor, humidity sensor, rain sensor, max. pulse 10 Hz, voltage up to 3.3V, resistance 1-100kΩ, digital Input 5, 6: 0-10V 10 outputs: 6 relay outputs, one of which can be a potential-free changeover contact 4 multi-function outputs, optionally 0-10V, PWM, relay (e.g. with HIREL22) Interfaces: CAN-Bus CORA-DL DL-Bus M-Bus (available via Jumper) Micro SD-Card (included in scope of delivery)
