Electric underfloor heating WFK

residentialcommercial

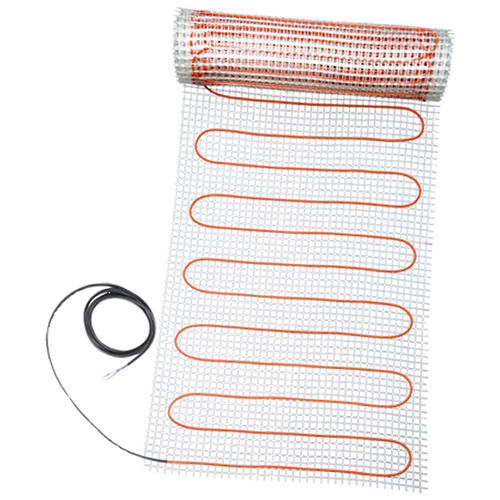

The floor heating for quick heating and continuous warm keeping of your floor. For the heating and additional heating of old and new buildings. Suitable for carpet, ceramic tiles and parquet floor. Feed in from one side with only one cold wire, simplified installation, easy adaption to the room conditions, saves time and effort. Specific power 160 W/m² Multifilar hot wire, teflonisolation, coppergrounding conductor, Heating cable sewed on self-adhesive fabric, mat thickness approx. 3 mm, 1 cold wire 4 m length, VDE 0700-96, DIN EN 60335-2-96. Complete set for floor temperature control consisting of: · Heating mat WFK-160 W/sq.m with 1 x 4 m PTC resistor · floor thermo-regulator TRT 61-50 with remote sensor · 1 m flexible protective tube · sensor sleeve FH · with adaptive start control The TRT 61-50 is a time-controlled universal temperature controller. It allows one or two warm periods a day, eg. from 6am to 10pm for a living room or 6am to 9am and 5pm to 9pm for a bathroom. In between are the economy times. The economy temperature, the controller reduces the set room temperature, will be programmed once. Room temperature controller - The unit regulates the room temperature in the range 5 ° - 30 ° C to the desired set temperature. Displayed is numerically the actual room temperature. Floor temperature controller - The unit controls the floor temperature in the range 10 ° - 40 ° C to the desired set temperature. The actual room temperature will be shown numerically.
