LED submersible light PERLA
for swimming pool

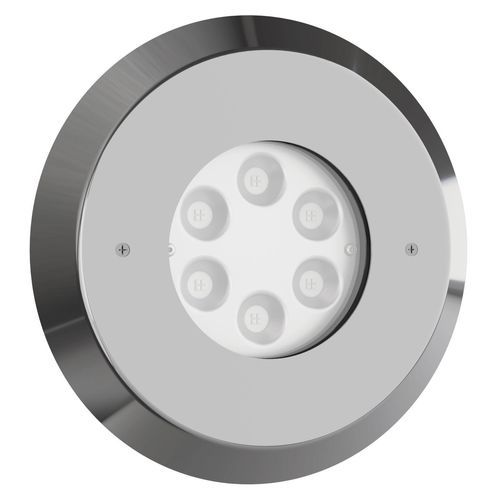

LED submersible light - PERLA - Teclumen - for swimming pool

LED submersible light - PERLA - Teclumen - for swimming pool - image - 2

LED submersible light - PERLA - Teclumen - for swimming pool - image - 3

LED submersible light - PERLA - Teclumen - for swimming pool - image - 4

LED submersible light - PERLA - Teclumen - for swimming pool - image - 5

LED submersible light - PERLA - Teclumen - for swimming pool - image - 6

LED submersible light - PERLA - Teclumen - for swimming pool - image - 7

LED submersible light - PERLA - Teclumen - for swimming pool - image - 8

Add to favorites

Compare this product

Go to the Teclumen website for more information

Characteristics

Light source: LED
Applications: for swimming pool

Description

Product descriptionPERLA is a fixed-colour LED pool lamp designed for medium-size pools. The supplied niche provides integrated cable storage to simplify maintenance. Suitable for installation in panel or reinforced-concrete structures with tiles or pool liner.Main characteristicsNiche and stainless-steel front flangeType: FIXMounting: WConnection: 2 wiresProduct variants (table)Code | Led Color | Luminous flux | Beam angle | Photometric curve (.LDT) | Technical Sheet (.PDF)2112342993 | COLD WHITE | 4400 lm | 120° | cf_Perla_5300K.ldt; cf_Perla_5300K_diff.ldt | ds_2112342993_en.pdf2112342990 | WARM WHITE | 3800 lm | 120° | cf_Perla_3000K.ldt; cf_Perla_3000K_diff.ldt | ds_2112342990_en.pdfTechnical Drawing - LegendNicheLampOptical diffuserFront flangeSandwich gasketLiner flangePlexy spacerPanelPool linerTechnical specificationsPower: 12 V ACMax cable length: 19 mReal/Apparent power consumption: 40 W / 50 VAInsulation class: IIIBody: AISI316L steel, glassDegree of protection: IP68Coverage area: 20 - 25 m2Operating temperature: MAX +40 °CWeight: 2.6 kg
