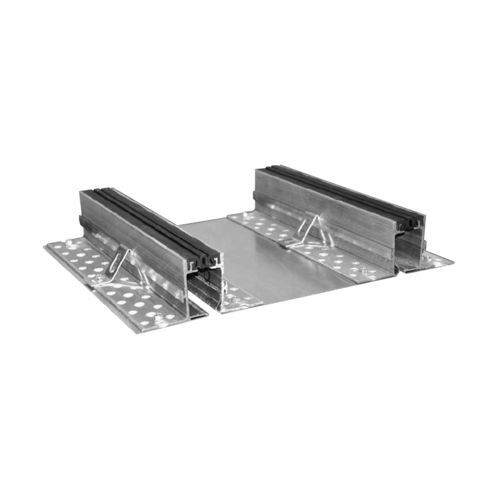

Aluminum expansion joint K SISM M50

floorseismic

Expansion joint profiles for floor joints up to 600 mm subject to high movement up to + /-50 mm in environments susceptible to crowding. The system is realized by means of central galvanized carriage pivoting to be filled with jet reinforced concrete (min. thick. 40 mm) and finishing, double side seal and angular aluminum external fixation. Exceeded the thermal movement of the carriage is raised 5 mm. Width limited view. Bar length 4 m. L = 50 mm self-tapping fixing. Gasket black. Side clamps for H = 82 mm. On request: bars to length, trims, corner versions floor / wall, seals, gray, beige,gray smooth (with mov. Reduced thermal).
