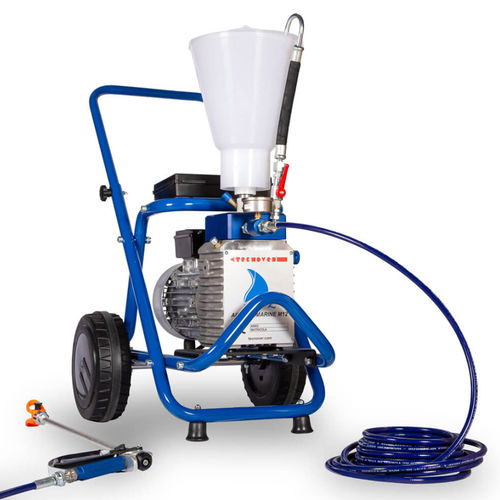

Surface sprayer MARINE M12

wheeledfor coatingspaint

Short description
Airless paint sprayer designed for the nautical sector. Optimized for application of antifouling paints, gelcoat and epoxy resins on hulls and marine structures. Now fitted with the Airless Revolver for quick fan adjustment with a single flick.

Technical features

• EC compliant electric motor with motor protector
• Power: 1.8 kW, single-phase 230 V / 50 Hz
• Noise level: 75 dB (per EC standards)
• Maximum working pressure: 230 Bar
• Flow (free delivery): 9 l/min
• Maximum nozzle hole diameter: 0.041″
• Maximum delivery head: 70 metres

The Airless Method
The TECNOVER MARINE M12 is engineered for marine painting: antifouling, GelCoat touch-ups and epoxy coatings on boat hulls. The airless process pumps high-pressure material to a gun with a tungsten-carbide nozzle; the pressure drop at the nozzle tip atomizes the coating and deposits it at low speed, producing minimal overspray. Benefits for marine use include higher material transfer efficiency, faster application and reduced airborne misting that can affect crew health. The unit's Airless Revolver allows rapid adjustment of the spray fan to suit different hull profiles and detail work. The product is backed by TECNOVER, an Italian manufacturer with over 40 years in the sector.

Kit composition

• 6-litre hopper
• Connector with pressure gauge
• High-pressure hose, single metal braid Ø 1/4″, WP 300 Bar, length 10 m
• Ultra-flexible hose (new)
• TECNOVER R500E Professional Airless Revolver (new)
• 50 cm extension for airless spray gun
• Base + TECNOVER Paintip self-cleaning nozzle kit

Additional information (table)
Weight: 1 kg
Dimensions: 50 × 50 × 50 cm
Applicable products: Antifouling paints, Epoxy resin, Gelcoat
Painting techniques: Airless method

Caractéristiques / spécifications techniques

• Brand: TECNOVER
• Model: MARINE M12
• EC compliant electric motor with motor protector
• Power: 1.8 kW, single-phase 230 V / 50 Hz
• Noise level: 75 dB (per EC standards)
• Maximum working pressure: 230 Bar
• Flow (free delivery): 9 l/min
• Maximum nozzle hole diameter: 0.041″
• Maximum delivery head: 70 metres
• Standard kit: 6-litre hopper, pressure gauge connector, 10 m high-pressure hose (1/4″, WP 300 Bar), ultra-flexible hose, Airless Revolver R500E, 50 cm gun extension, base + self-cleaning Paintip nozzle
• Weight: 1 kg
• Dimensions (packed / unit): 50 × 50 × 50 cm
