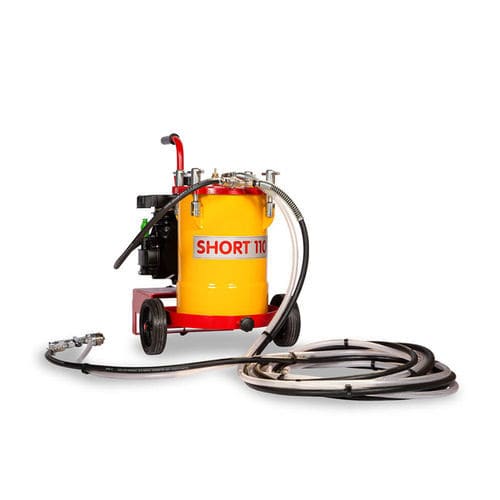

Surface sprayer SHORT 110

wheeledpaintelectric

Short description
The Short 110 is a mobile under-pressure spray unit designed for polychrome decorations such as alphatone. Easy to handle and transport, it is suitable for site work and finishing applications in residential and commercial environments.

Technology and usage

• Under-pressure system driven by an electric compressor that pressurizes the tank (maximum 3 Bar).
• The material is delivered to the airbrush and mixes with compressed air at the nozzle for optimal atomization.
• Suitable for low to medium viscosity products that require a fine finish.
• Eliminates frequent refills and the weight associated with cup guns; the Short 110 uses a lightweight spray gun and accepts product containers directly in the tank.
• Compatible with a range of nozzle sizes (0.8–3 mm).
• Can spray alphatone, polychrome products, enamels, washable paints (including quartz), tempera, and thin plastic coatings.
• Wheeled design for easy transport; total weight less than 30 kg.

Additional information
Guaranteed by the TECNOVER brand, an Italian company with over 35 years of experience in spraying equipment manufacturing.

Technical specifications

• Electric compressor compliant with EC standards
• Power: single-phase 1.1 kW 230 V / 50 Hz
• Pressure tank capacity: 15 litres
• Air + material feed length: 7.5 m
• Total weight: 28 kg
• Maximum tank pressure: 3 Bar
• Available nozzle sizes: 0.8–3 mm
