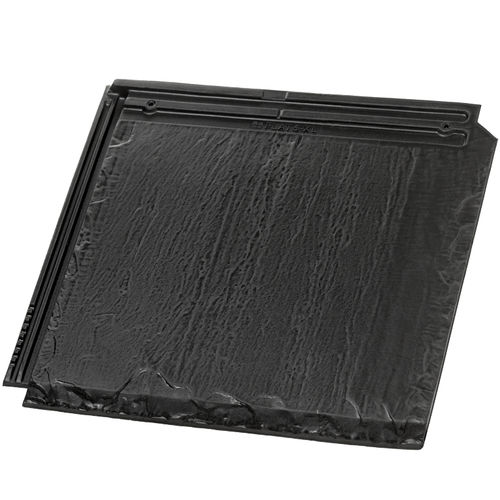

Flat roof tile FLAT-5XL®
interlockinglargeclay

flat roof tile
flat roof tile
flat roof tile
flat roof tile
flat roof tile
flat roof tile
flat roof tile
Add to favorites
Compare this product


Characteristics

Shape
flat, interlocking
Size
large
Material
clay
Color
brown, gray, black, blue, green, ocher, orange, pink
Appearance
smooth, colored, slate look, terracotta look
Width

510 mm (20 in)

Length

457 mm (18 in)

Description

Weight: 6,55 Kg./Teja Units/sq.m.: 5,48 Uds. Useful length: (Batten distance) VARIABLE 340 - 385 mm Units per ml eave line: 2 Minimum pitch recommended 30% – 17º (*) Useful width 476 mm Pallet info 152 units / 1.023 Kg. Minimum order 2 roof tiles The FLAT-5XL is another example of the innovation, development and improvement of our products which, together with our exclusive BorjaJET finishing technology, can make architects’ impossible dreams a reality. The largest ceramic roof tile ever made. High performance in installation (5 units/sq.m.) Wide range of finishes (BorjaJET exclusive) FLAT-5XL BorjaJET is a product award-winning of Red Dot Award: Product Design 2019 Approximate values: If the roof tiles are installed on battens, the useful length must be calculated on site. A tolerance of ± 2% is allowed on the dimensions of the roof tiles according to UNE-EN 1024. (*) In zone 1 (protected area), arranged in staggered formation with waterproof laminate and batten distance of 340 mm on a skirt of up to 6.5 m. Check pitch pannel according to the roof length and the geographical area according to UNE-EN 136020.
