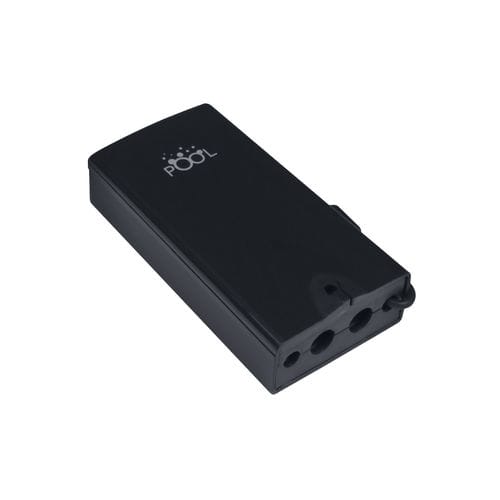

Automatic cover pool control panel RCM

programmable

RADIO RECEIVER TO BE CONNECTED TO THE CONTROL UNIT OF THE POOL SHUTTER MOTOR 12/24 Vac/dc radio receiver with 2 potential free outputs for controlling pool shutters. Programmable operating times of the second output (60, 120, 180 or 240 sec.) Controlled by Smartphone via T-Mate Pool Configuration via dip-switch of the hold-to-run or automatic control mode in the opening and closing directions Compatible with TVTXP868A02PO and TVTXK868B04PO transmitters Power supply - 12/24 Vac/dc Number of outputs - 2 Max. power at the relay - Voltage: 48 Vac Resistive loads: 28 W Inductive/capacitive loads: 60 VA Protection rating - IP54 Dimensions - 118x52x25 mm
