Reinforcement geogrid TERAPLEX®

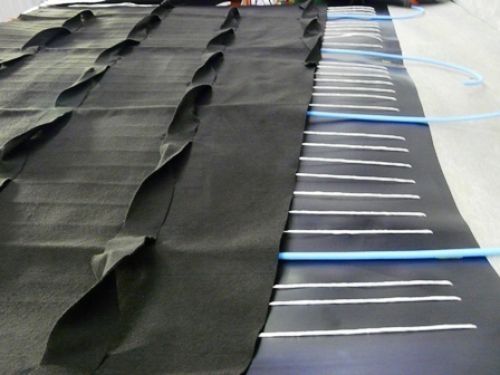

teraplex® , multifunction, monobloc landfill covering waterproofing system in one piece, ready to use Le teraplex® combines the characteristics of teracro®, reinforced with polyester cables, teradrain® , and also waterproofing membrane. This one piece system is used : For refuse landfill covering (waste storage centers) For waste heap covering Advantages ● teraplex® is a multifunction, monobloc system, ● waterproofing by polyethylene film or membrane, ● puncture-resistant via nonwoven geotextiles, ● strengthening on slopes by included polyester cables, ● high drainage by included network of mini-drains, ● holds plant or mineral top layers in place, for lasting protection and natural integration by geocellular retention upstands, ● our installation department performs your work to state-ofthe-art standards with its trained and certified personnel. Description ● tensile strength 150 kN/m, as per NF EN ISO 10319, ● water flow capacity in the plane 720 litres/metre/hour, as per NF EN ISO 12958, ● puncture resistance 4 kN, as per NFG 38019, ● bonding upstand height 13 cm.
