Reinforcement geogrid BODPAVE 40

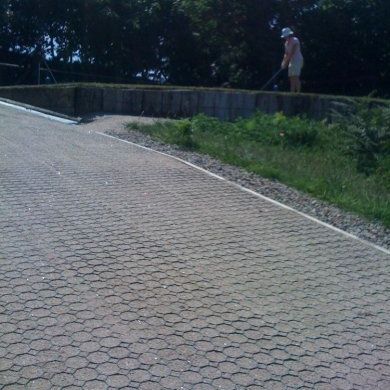

BodPave 40 grass pavers are an interlocking cellular paving grid system for grass and ground reinforcement applications where there is regular pedestrian or vehicle use. BodPave 40 permeable paving grids can be installed with either a grass or gravel filled surface and allow full rainwater penetration. Manufactured from UV stabilised 100% recycled HDPE, in black or green, BodPave 40 plastic pavers are strong, chemically inert & non-toxic, enabling them to provide a durable, safe & sustainable eco-friendly surface for trafficked areas. Designed for applications such as: Grass & Gravel Car Parks Overflow Car Parks Emergency/HGV Service Access Routes Aircraft Taxiways & Helipads Pedestrian Walkways Wheelchair / Disabled Access Routes Golf Buggy Paths SUDS Source Control BodPave 40 grass pavers are a cost effective solution to worn & rutted grassed areas, displaced gravel and for Source Control of surface water run-off. BodPave 40 paving grids are designed to be installed onto a well prepared, free-draining and relatively even surface using either Terram 'Reduced-Dig System' or by employing a full sub-base construction incorporating a geogrid reinforcement layer. The ground reinforcement paving grids simply connect together and are filled with either a sand : soil rootzone and seeded for use as grass pavers which provides a visually pleasant and stable surface structure through which grass can be grown, or filled with an angular gravel for use as a gravel retention reinforcement surface. Construction profiles for each application will be determined by the specific site conditions & loading criteria.
