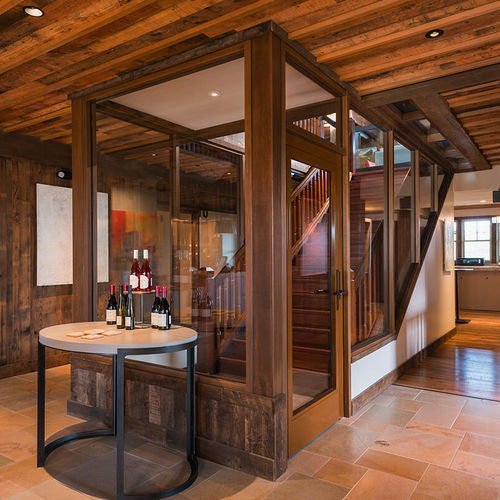

Glass door profile FIREFRAME TIMBERLINE™ SERIES

woodenfire-rated

Fireframes TimberLine™ Series features a high strength steel sub-frame with a real wood veneered metal cover cap. The result is a barrier to radiant and conductive heat transfer with tall spans. Combined with Pilkington Pyrostop® fire-rated glass, this system allows for unlimited areas of glazing in fire separations. KEY FEATURES Fire ratings of 45-120 minutes with required hose stream test Easy installation Frames supplied "K-D" (knock-down) ready for installation Real wood finish veneered metal cover caps Standard species available are cherry, white maple and red oak. Other species available for qualified projects Incorporates large individual panes of Pilkington Pyrostop® fire-resistive-rated glass, comprised of Pilkington Optiwhite™ glass and clear intumescent layers Designed for interior use Passes wall assembly test standard UL 263 / ASTM E119 for 60 and 120 minute ratings Compatible with full-lite single leaf and double leaf design doors (Fireframes Designer Series, or Fireframes Heat Barrier Series) from TGP or wood doors by others
