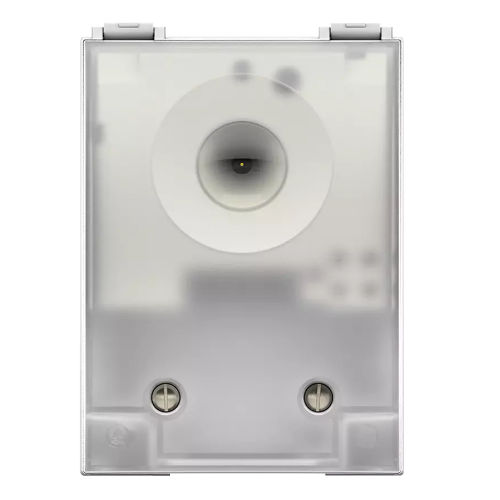

Wall-mounted twilight switch LUNA 126 STAR E

Twilight switch with integrated light sensor Fixed On and Off switching delay to avoid faulty operation caused by lightning, car headlights etc. Cable feed from the back and from below Cover with snap-on function when opening for the straightforward installation of the device Captive screws Large terminal area Brightness value can be set without opening the device Large light exposure angle (approx. 180 degrees) Infinitely adjustable switching brightness Operating voltage - 230 V AC Frequency - 50 – 60 Hz Number of channels - 1 Stand-by consumption - ~0.6 W Setting range brightness - 2 – 200 lx Switch-on delay - 20 s Switch-off delay - 80 s Type of contact - NO contact Switching output - Not potential-free (230 V) Installation type - Wall installation or mast bracket Type of connection - Screw terminals Switching capacity - 16 A at 230 V AC, cos φ = 1, 10 AX at 230 V AC, cos φ = 0.3 Incandescent/halogen lamp load - 2300 W Halogen lamp load - 2300 W Fluorescent lamp load (electronic ballast) - 350 W LED lamp 8 W - 350 W Housing and insulation material - High-temperature resistant, self-extinguishing thermoplastic Ambient temperature - -35°C ... 55°C Type of protection - IP 55 Protection class - II
