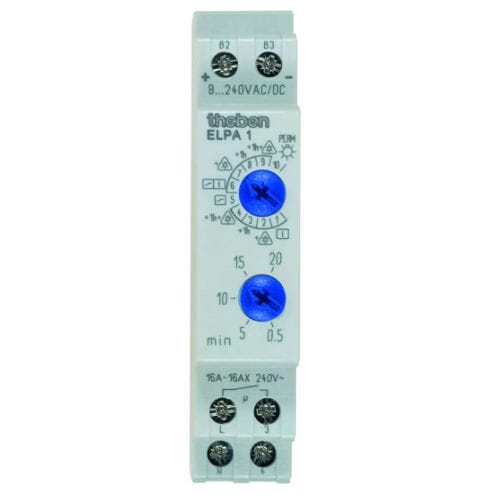

Analog time switch ELPA 1

DIN rail

Staircase time switch, electronical Zero-cross switching for relay-saving switching and high lamp loads Multi-functional device with 10 available functions, set at the front of the device Additional multi-voltage input electrically isolated for AC/DC 8...240 V, e.g. für intercoms Switch-off pre-warning (two double flashes) in accordance with DIN 18015-2 to avoid sudden darkness Extended function activated via long button press Immediate secondary switching (stair light switch) or prematurely switched off (pulse switch with switch-off delay) Permanent switch Electronic pulse light Terminal layout same as ELPA 8 Extremely accurate Push button input with electronic overload protection Automatic 3 or 4 conductor detection (4 conductor with connection for floor lighting, 3 conductor no longer permitted for new systems) Operating voltage - 230 V AC Frequency - 50 – 60 Hz Width - 1 modules Installation type - DIN rail Stand-by consumption - ~0.3 W Capacity loss max. - 1 W Glow lamp load - 100 mA Setting range time - 0.5 – 20 min Type of connection - 3-/4-conductors 3/4-way conductors - Automatic Secondary switching - At once Duty cycle in per cent - 100 Type of contact - NO contact Opening width - < 3 mm (µ) Switching output - Not potential-free (230 V) Incandescent/halogen lamp load - 2600 W Fluorescent lamp load (conventional) lead-lag circuit - 2600 VA Fluorescent lamp load (conventional) parallel-corrected - 1300 VA 130 µF LED lamp 8 W - 600 W Fluorescent lamp load (electronic ballast) - 1100 W Fluorescent lamp load (conventional) series-corrected - 2600 VA Fluorescent lamp load (conventional) not corrected - 2600 VA
