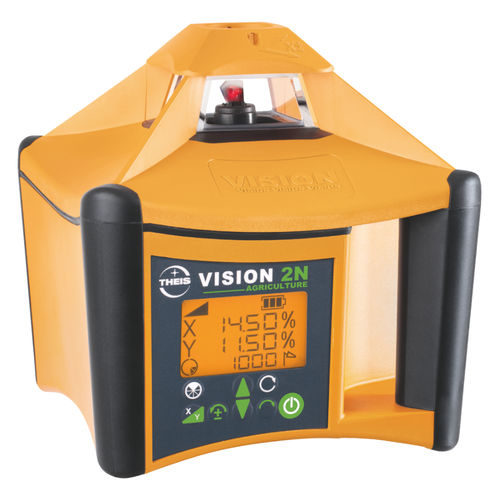

Laser level VISION 2N AGRICULTURE

horizontalautomaticelectronic

HORIZONTAL DUAL GRADE LASER WITH AUTOMATIC ADJUSTMENT Horizontal dual grade laser with automatic monitoring and adjustment of the laser plane (Autoslope). The laser has been specifically developed for agricultural applications and is equipped with electronic monitoring of the laser plane, which registers any change due to thermal or mechanical impact and immediately initiates adjustment. TILT function becomes active in the event of major position changes of the laser. A fault message is displayed and measuring is suspended. In addition, the laser features rotational speeddependent laser output to achieve maximum ranges. Dual grade slope +/- 15 % with adjustment (Autoslope) TILT in levelling and grade Storage of last slope values Range up to 1000 m (radius) Operating temperature up to 60°C Illuminated LCD display Masking function of the laser beam SPECIFICATION Laser Class/High Power (option) - 3R Wave length - 635 nm Output/High Power (option) - < 5 mW Range (radius)/High Power (option) - up to 1000 m Horizontal/Vertical - ✓ / – Self-levelling range - ± 5° Levelling accuracy - ± 1,5 mm/30 m Grade range x,y - ± 15 % Grade compensation - ✓ Grade accuracy - ± 0,025 % Align function, horizontal/vertical * - – Speed step by step mode (rpm) - 0 – 1000 Partial mask mode - ✓ Windy function - ✓ Display lighted - ✓ Power source - NiMH+ or Alkaline “D“ cells Running time (accu/battery) - ≈ 70 h / 120 h Charging time - ≈ 6 h Operating temperature - -15 ... +60 °C System of protection - IP 67 Weight - ≈ 3 kg
