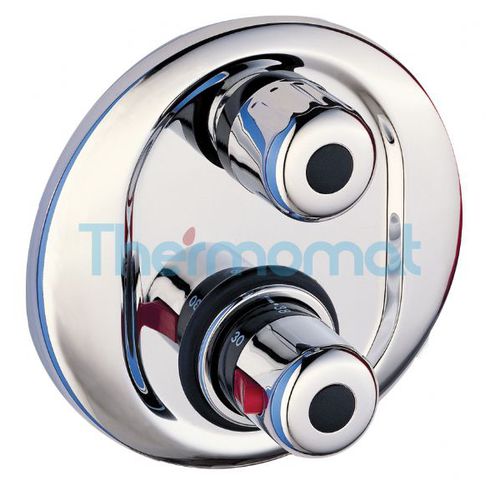

Shower mixer tap TMTI1R34VC

built-inchromed metalthermostatic

PRODUCT FEATURES: Built-in thermostatic mixer, with one stop tap. Chrome-plated body, chrome-plated finishing, chromed ABS knob. Regulating knob with degree scale and a 38°C blocking button. Interchangeable cartdridge, with filters and valves on the inlets. The thermostatic mixer adjust the temperature of hot sanitary water at a pre-fixed value regardless of pressure and temperature variations of the inlet water. It allows to have a constant temperature warter ensuring an high comfort, saving hot water and avoiding scalds. Ceramic disks tab, 90°C rotation. Filters and check valves are easily checkable. Wall installation: mm 60 - 74 deep. Featuring built-in case. TECHNICAL DATA: Connections: 3/4" G female Maximum static pressure: 1.000 KPa (10 Bar) Working pressure (dynamic): 100÷500 KPa (1÷ 5 Bar) Maximum inlet temperature: 85°C Knob settin range: 20÷50°C Safety lock: 38°C Flow rate : 40,0 l/min (3 bar) 3/4" tap with standard cartdrige Ceramic disks tap - 90° rotation Checkable connections with check valve and filters Built in case
