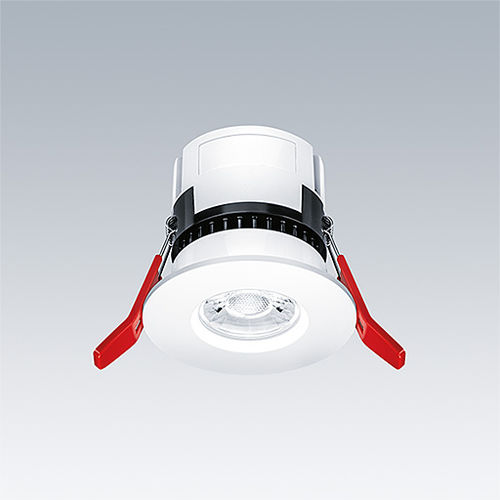

The IP65 and fire-rated downlight completes our Chalice range with a smaller size for demanding environments
IP65 from below for installation in moist environments like bathrooms
Tool-free and flexible installation with completely detachable connector box
Exchangeable lens and bezel for customisation on site
Materials and Finish
Housing/body material: steel with aluminium heatsink covered with a PC cap
Lens material: PMMA
Bezel material: die-cast aluminium
Bezel finish: matt white, gloss white, matt black, chrome, brushed aluminium
Chalice 74 can be installed directly from the box into a wide range of ceiling types including thicknesses from 1mm – 25mm.
Equipped with a detachable connector which allows an easy and toolfree pre-wiring via push-fit terminal block.
A ceiling recessed, fire-rated, LED downlight with IP65 as standard.
Fixed output. Correlated colour temperature is 3000/4000K with CRI>80 and a chromaticity tolerance of 3.
Luminaire is available in two lumen packages 550lm and 900lm.
Overall height <100mm and a cut out of 74-80mm. Lifetime is 50,000 hours (L70) at Ta 25°C.
