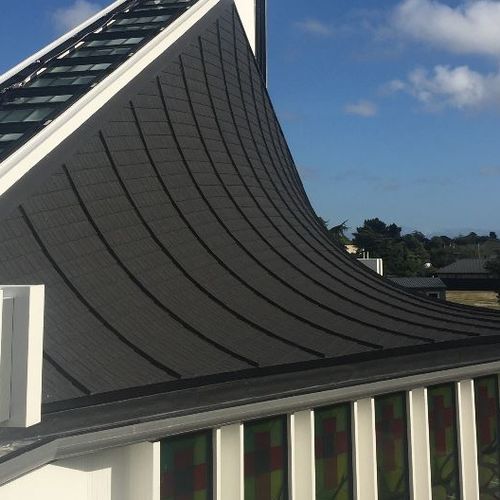

Tilcor’s CF Shake has been specifically designed for the North American market to embrace the rustic charm of traditional Shake but with the strength and durability that can only come from a stone coated steel Tilcor panel. Its deep-ribbed profile enhances the shadow lines and creates visual contrast. With our world-first fully Concealed Fastening (CF) system, screws are completely hidden from sight and the elements, delivering the ultimate combination of beauty and weathertightness.
Overall Length
1335 mm
Length of cover
1260 mm
Width of cover
370 mm
Roof cover /Tile
0.46 m
Tiles /m2
2.15
Weight /Tile
3.5 kg
Weight /m2
7.5 kg
Minimum roof pitch
15 degrees
Tilcor's textured finish provides added protection by embedding stone granules in an acrylic base-coat. A final clear acrylic over-glaze is applied before being oven cured at 120° C. This extremely durable UV-resistant coating enables Tilcor roofing products to withstand the harshest environments around the world. Tilcor is ISO 9001 accredited and has international tests reports, appraisals and field results confirm our products are 100% waterproof, earthquake safe, fire resistant and able to withstand hurricane-force winds of up to 190kph. A Tilcor roof will not only safeguard your investment but will also give you complete peace of mind because it's backed by a Tilcor Warranty.
Tilcor’s CF Shake has been specifically designed to
resemble the rustic charm of traditional Shake but without
the inherent ongoing issues that many home owners face.
Its innovative fully “Concealed Fastening” system is truly
a world’s first. The Tilcor CF Shake textured-finish tile
features the wood-grain appearance of traditional shake.
