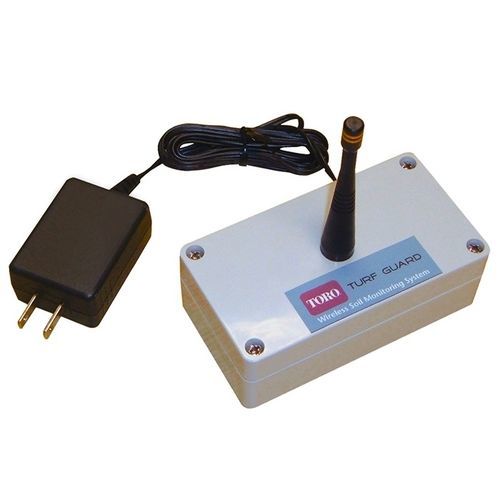

Floor monitoring system TURF GUARD®

wireless

The Toro Turf Guard Wireless Soil Monitoring system is a revolutionary technology that lets you know what’s going on beneath the surface of your turf, so you can make timely, more-informed adjustments. Features Wireless Network No wires between the repeaters and the sensors, or the sensor and the probes means that sensors can be installed anywhere on your turf without disrupting play. Install sensors in other areas without having to trench or pull wires. Track Salt Build-up And Schedule Flushing Take the guesswork out of monitoring and managing salinity levels. Get positive confirmation that your flushing reduced soil salts. Know when and how much water to flush with. Specifications Communication Options - 900 MHz ISM Band FHSS Dimensions - Body: 2" (50 mm) x 3 5⁄8" (92 mm) x 6 1⁄8" (156 mm); Spikes: (1¾" (44 mm) x 3/16" (5 mm) Installation Hole - 4.25" (10.8 cm) Diameter Operating Temperature - 32° F to 140° F Power - Repeater input: (02A @ 6 VDC); Base Station Input: (1A @ 120 VAC, 50/60 Hz) Range - Repeater Range - 5,000' (1,524 m), Buried Sensor Range - 500' (152 m) Sensing - 0.1° F Temperature 0.1% Soil Moisture 0.1 dS/m Soil Salinity Wireless - Yes
