Laminated glass panel
temperedsun protectioninsulating

laminated glass panel
laminated glass panel
laminated glass panel
laminated glass panel
laminated glass panel
laminated glass panel
Add to favorites
Compare this product


Characteristics

Type
laminated, tempered
Technical characteristics
insulating, sun protection, thermo-acoustic insulating
Appearance
transparent
Applications
for partition walls, for facade, for balconies, for exterior fittings, for doors
Other characteristics
flat, weather-resistant, wind-proof
Length

3,000 mm (118 in)

Width

1,800 mm (71 in)

Weight

100 kg (220 lb)

Description

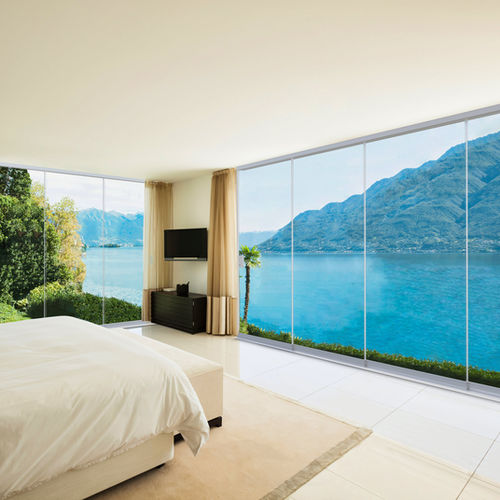

It is the most innovative, simple and resistant solution since it does not have vertical profiles combining design and functionality. This Perimeter enclosure in tempered or laminated glass closes and opens, allowing to enclose or convert an exterior space into an interior space and vice versa. Modular profiling system, which allows increasing the number of lanes, has sliding glass panels that move on rails with anodized aluminum profiles, especially recommended for separating spaces in homes, businesses, restaurants, premises and outdoors. TECHNICAL CHARACTERISTICS - Structure made of 6063-t5 aluminum profiles - Lacquered finish with electrostatic powder paint or anodized - Stainless steel screws and fasteners - Wind resistance: 80 km / h - Acoustic insulation: 34 db - Thermal insulation: 6.5 w / m2k - Water resistance: class 2a - Glass gauges: 8mm-10mm-12mm - Maximum panel width: 700mm, (650mm recommended) - Maximum door width: 800mm - Maximum height: 3000mm - Maximum width: 1800mm - Maximum rails: 5 - Bottom profile: 12.5mm - Maximum weight: 100kg - Sealing: pvc packaging
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
