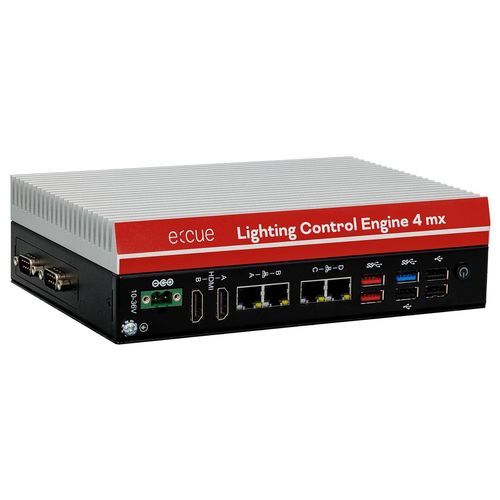

Light controller LCE4MX

Overview
A high-performance server pre-installed with e:cue SYMPHOLIGHT and the e:cue Lighting Application Suite (LAS) to control small to medium architectural lighting projects. The Lighting Control Engine 4 mx (LCE4mx) serves as a centralized control unit, enabling integration with external engines, triggers, third-party devices and multimedia content for building and façade lighting systems.

Key features

• Pre-installed with e:cue SYMPHOLIGHT and the e:cue Lighting Application Suite (LAS)
• Industrial-grade components for continuous operation
• Fanless design with 256 GByte SSD — no moving parts
• Support for multiple lighting control protocols (e:net, Art-Net, sACN, DALI-2)
• Flexible installation: DIN rail or wall mounting (DIN rail not included)
• Headless operation supported (no keyboard or monitor required)
• External power supply included
• Microsoft Windows 11 LTSC with 10 years security updates
• 5 years support & warranty

Protocols & integration
Supports e:net, Art-Net, sACN and DALI-2. Enables integration with external engines, triggers and multimedia systems for medium-scale architectural and automation projects, facilitating synchronized control and content playback.

Certifications
CE, FCC. IC: CL26100016155

Technical specifications

• Dimensions (W x H x D): 200 x 140 x 55.7 mm / 7.87 x 5.51 x 2.19 in
• Weight: 1.8 kg / 3.97 lb
• Power Supply: External 10 … 36 V DC, 2.5 … 9 A
• Power Consumption: 90 W
• Operating Temperature: -20 … 60 °C / -4 … 140 °F
• Storage Temperature: -40 … 85 °C / -40 … 185 °F
• Relative Humidity: 10 … 95% @ 40 °C, non-condensing
• Housing: Metal
• Mounting: DIN rail and wall mounting
• Battery: Yes (1)
• Certification: CE, FCC
• Operating System: Microsoft® Windows 11™ (Windows 11 LTSC referenced in product)
• LAN Chipset: 1 x Gigabit Ethernet, 3 x 2.5 Gigabit Ethernet
• System Connection Ports: 4 x e:net (RJ45 Ethernet for GbE), 4 x RS-232/422/485, 2 x RS-232, 3 x USB 3.2 and 3 x USB 2.0, 2 x HDMI (max. resolution: 4096 x 2304 @ 60 Hz), 2 x audio (Line-out & Mic-in)
• Data Storage: 256 GByte SSD
• User Interfaces: Power button & LED, Remote On/Off switch
