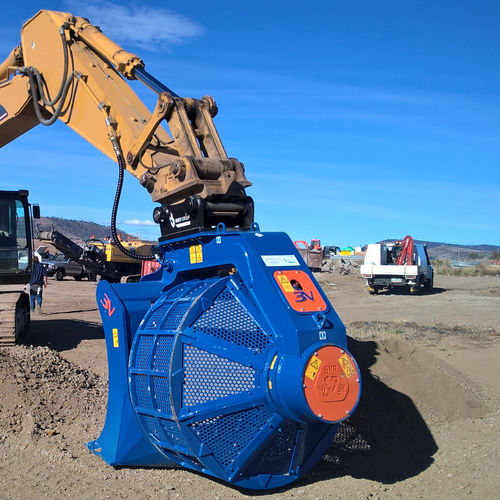

Screening bucket BVR SERIES

for excavatorsfor loaders

Extremely versatile and compact equipment, designed for selection and screening operations. Models9 models (see the specifications in the data sheet) Weightsweights: from 110 to 4.900 kg Excavator weightsexcavator weights: from 1,4 to 65 ton Widthwidth: from 520 to 2.120 mm Rotationoutput: from 0,08 to 2,7 m3 Recommended for: - selection of pebbles along watercourses - filling of containment cages - selection of waste materials after a demolition - reclamation of stony soils - removal of stones along the beaches - separation of organic waste in landfill - aggregate recovery in building renovations - maintenance of public and private green areas - coverage of pipes in canalization works 1 Inlet profile inclined to facilitate loading of the material to be screened 2 Also available in wheel-loader version 3 Perimeter kit available in braided net or perforated sheet 4 Perimeter kit consisting of 4 calendered sections bolted to the basket easily replaceable by the operator 5 From the BVR 12e model the bottom is tapered to increase the screening surface 6 Integrated high-pressure relief valve that protects the motor against pressure peaks 7 Hydraulic components protected by the frame and easy to access for possible inspections 8 Double-turn ball bearing to fully support the screening basket
