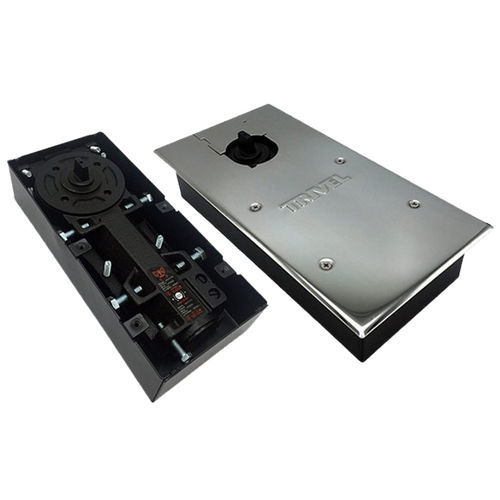

Hydraulic spring G75 C

Mechanism equipped with two closing speeds: 1st speed: approach speed, acts from 90º to 25º 2nd speed: closing speed, acts approximately from 25º to 0º Hold-open at 90º Thermo-constant hydraulic fluid. Flash point 160ºC, freezing point -40ºC Wide adjustment capability inside the metal casing: height, width, height, and diagonal adjustments Certified according to UNE-EN 1154:2003/AC 2006 Grade 8 (500,000 cycles) Recommended door dimensions Door width: 1100 mm Recommended maximum door weight: 100 kg OPTIONS AVAILABLE ON REQUEST Satin stainless steel decorative cover Decorative covers with electrolytic finishes Decorative covers in RAL colors G75ST Box for installation in raised floors
