Technical description

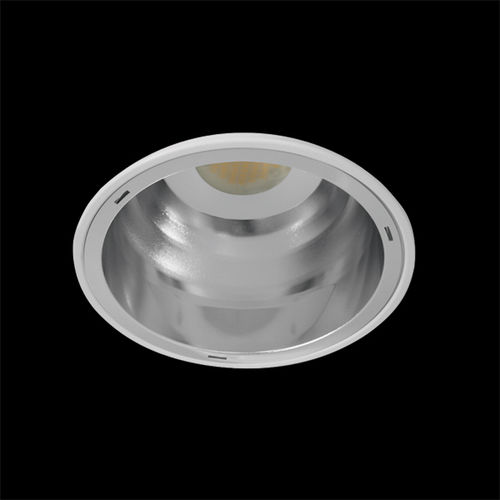

Round format fix downlight from the TROLL family Optics LED setting an advanced and innovative thermal balance system through passive dissipation with stable colour temperature of 3000º K (warm white) optimised to be used as general indoor lighting for offices, hospitals commercial areas or residential & contract spaces. Designed for ceiling recessed installation. Luminaire body built in stainless steel sheet with aluminium heat-sink finished in white. Luminaire is IP20 but it could became IP44 through the use of the diffuser accessory. Luminaire built-in an reflector made of high purity aluminium with an angle beam of 80º. Luminaire sets a 13 W LED source with CRI higher than 85 % and a chromatic dispersion lower than 3 SMCD. Luminaire UGR<19. Fixture has a luminous flux of 1090 Lm, with an efficiency of 78 Lm/W and a total consumption of 14 W. The average life for the luminaire is 50000 h (stabilised at a minimum flux of 70 % from the original). Luminaire built-in an auxiliary gear DALI dimmable fed at 220-240V; 50/60 Hz.
Materials
Luminaire body built in stainless steel sheet with aluminium heat-sink.
Optical system
Luminaire built-in a reflector made of high purity aluminium.
