Description

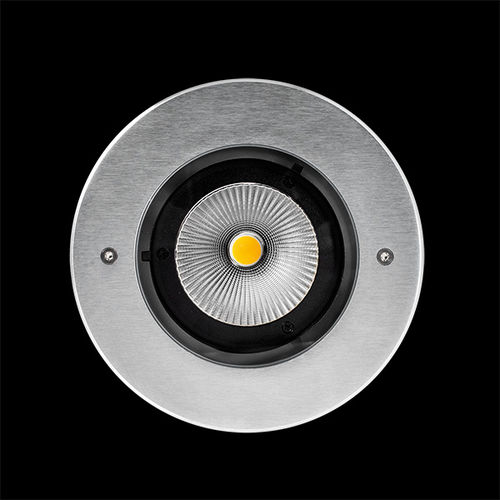

Inground luminaire from the TROLL family Atlante.
Technical description
Inground luminaire from the TROLL family Atlante setting an advanced and innovative thermal balance system through passive dissipation with stable colour temperature of 3000º K (warm white) optimised to be used as architectural lighting of semi-covered spaces and façades. Designed for inground installation. Body built in die-cast aluminium with the frontal made of tempered glass and stainless steel finished in Polish steel. Luminaire is IP67 and IK07. Luminaire built-in an high efficiency faceted reflector made of high purity aluminium with an angle beam of 10º. Luminaire sets a 12 W LED source with CRI higher than 80 % and a chromatic dispersion lower than 3 SMCD. Fixture has a luminous flux of 1350 Lm, with an efficiency of 96,4 Lm/W and a total consumption of 14 W. The average life for the luminaire is 50000 h (stabilised at a minimum flux of 70 % from the original). Luminaire built-in an auxiliary gear ON/OF fed at 220-240V; 50/60 Hz.
Materials
Body built in die-cast aluminium with the frontal made of tempered glass and stainless steel.
Optical system
Luminaire built-in a high efficiency faceted reflector made of high purity aluminium.
