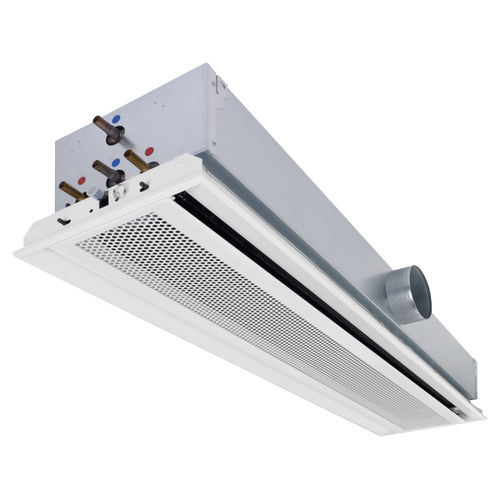

ACTIVE CHILLED BEAM WITH TWO-WAY AIR DISCHARGE, 300 MM NOMINAL WIDTH, VERTICAL HEAT EXCHANGER AND CONDENSATE DRIP TRAY
Active chilled beam for heating and cooling, with 2-pipe or 4-pipe heat exchanger, for integration with various ceiling systems. The condensate drip tray is useful if the temperature temporarily falls below the dew point.
Preferably for room heights up to 4.00 m
High heating and cooling capacity with a low conditioned primary air volume flow rate and low sound power level
High comfort levels due to low airflow velocity in the occupied zone
Three nozzle variants to optimise induction based on demand
Hinged, removable induced air grille in four designs
Optional equipment and accessories
Control system
Additional casing for extract air
Heat exchanger powder-coated black
Powder coating in many different colours, e.g. RAL CLASSIC
Active chilled beams of Type DID312, with twoway air discharge and high thermal output, providing high thermal comfort levels. For installation flush with the ceiling, preferably in rooms with a height up to 4.00 m. The units consist of a casing with suspension points, a spigot, non-combustible nozzles, and two vertical heat exchangers. Three nozzle variants to optimise induction based on demand.
SPECIAL CHARACTERISTICS
- The vertical heat exchanger with condensate drip tray is useful if the temperature temporarily falls below the dew point
- Hinged, removable induced air grille in four designs
- Heat exchanger as 2-pipe or 4-pipe system
- Internal nozzle plate with punched nozzles (non-combustible)
