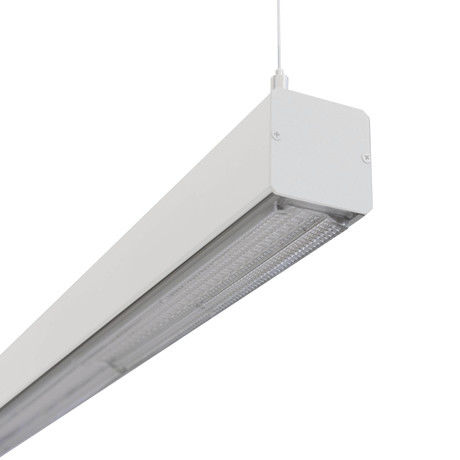

Hanging light fixture TS LINE

LEDlinearIP20

TS is a linear LED luminaire with high quality optics system. Suitable for all types of stores industrial buildings and sports arenas. DESCRIPTION Linear Luminaire ► Body Eloxal aluminum profile ► Optics & Variants Linear plastic optics CN – Narrow beam 60° CW – Wide beam 90° CHR – High rack 35° CRA – Asymmetric retail ► LED Mid Power LED 3…Warm white 3000K 4…Cold White 4000K 5…Daylight 5700K ► Light control LED driver ND – Non dimmable (standard) DALI – Dimmable DALI ► Installation Commuted installation in continous line ► System components TS /A/ ... trunking AL-base with 9 (or 5 or 7) - wires, including connectors 2m rope mounts 2L = 2844 mm 1L = 1422mm TS/B/ ... Gearbox - light unit with optics TS/C/ ... Accessories TS/C/PS ... Connection set for power cable input TS/C/L ... Blind compartment (protection) 1422mm TS/C/HAK ... pendant - 2 hooks for chain suspension
