Wear-resistant machine for pumping concrete and shotcrete in heavy working conditions

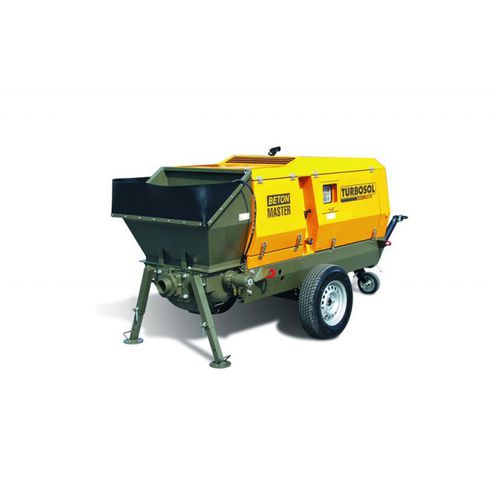

Beton Master is a 2-cylinder pump with S-valve and variable output for pumping concrete, micro-concrete, special concrete and for spraying concrete. Beton Master is a reliable alternative solution to the common concrete mixers, especially in difficult working conditions.
Applications
- Concrete, grouts, structural mortars, refractory mortars
- Self-levelling floor screeds
- Land reinforcement
- Micro-piles, pressurized injection of mortars and cementitious slurries
- Compaction grouting
- Shotcrete works
Versions
- Pumping version with concrete grill, steel pipes and rubber hoses Ø 100
- Shotcrete version with gril with 15 mm mesh, rubber hose Ø100 and shotcrete gun Ø 50
Technical advantages
- Thanks to the special construction, the dimensions of the pump-valve assembly and the configuration of the hydraulic system, the machine can be used for transporting and casting concrete and for spraying mortars and shotcrete
- With 80 bar of maximum pressure, the machine can pump between 2 and 15 cubic meters per hour of concrete
- It can equipped with different diameters steel pipes or rubber hose depending on the particle size of the aggregate to be pump
