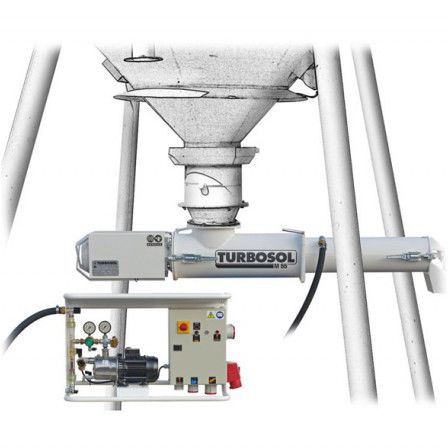

Pneumatic conveyor for dry mixed plasters and mortars
M55 is the modern answer for large amounts of homogenous mixes. Connected to the silo, it replaces the common mortar mixers, drastically reducing mixing time and daily maintenance, guaranteeing efficient site management.
It can be used together with a plastering machine or pumping machine to set up a self-contained mixing and pumping centre.
TURBOMIX M55 can operate either manually or automatically (if equipped with an automatic electro-hydraulic panel and a level indicator).
Technical data
TECHNICAL DATA
MANUAL
AUTOMATIC
Electric motor5,5 kW - 400 V5,5 kW - 400 V
Output60 l/min60 l/min
Water pump--- 60 l/min (automatic)
Water pressure2 bar2 bar
Water hose coupling3/4"3/4"
Size (L x W x H)227 x 42 x 38 cm227 x 42 x 38 cm
Weight132 kg
147 kg
