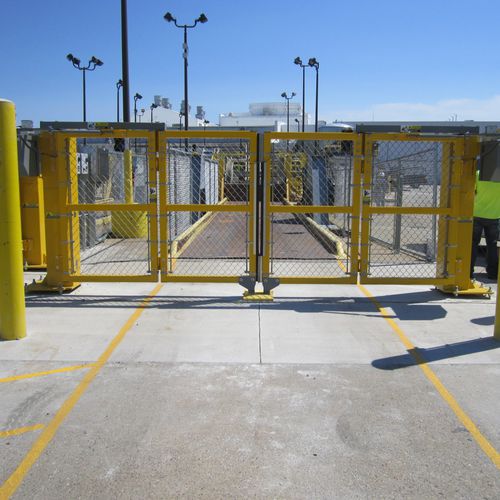

The SecurFold Trackless Bi-Folding Speed Gate is a folding gate system designed for perimeter security access where high cycle speed and durability is a must, but space is limited. Independently tested and certified to 200,000 cycles (ISO 17025) without failure or breakdown.
Features:
Clear Openings up to 20 feet
Panel Heights up to 10 feet
Woven, Vertical Picket, Chain Link, and Custom Infills available
Painted, Galvanized, or Galvanized with Powder Coat finish available
Dual 120-575V 60hz motors (one in each column, 380V 50 hz available)
Benefits:
Ideal for tight spaces where there is little room to swing or slide a traditional automated gate. Virtually no area to either side of the opening is required.
Self-Supporting 12”X12”x ¼” tube columns with factory attached hinges, operator supports and base plate.
Motors and electronics are always located on the protected/secure side of the fence line.
Trackless design means unlimited overhead clearance and no special drains below.
Unit arrives ready to bolt down and turn on, virtually no field assembly required.
Aesthetically pleasing Anti-climb configuration available.
Obstruction devices concealed within protection of the columns.
Easily integrates with most common access control, safety and security devices.
Uninterruptable Power Supply and or Solar Powered configurations available.
Simple but secure manual release for local power failure (available with high security locking access cover).
UL325 class I-IV listed.
