Slot drainage channel EUROSELFV+
with gratingpolymer concretegalvanised steel grate

Slot drainage channel - EUROSELFV+ - ULMA - ARCHITECTURAL SOLUTIONS - with grating / polymer concrete / galvanised steel grate
Slot drainage channel - EUROSELFV+ - ULMA - ARCHITECTURAL SOLUTIONS - with grating / polymer concrete / galvanised steel grate
Slot drainage channel - EUROSELFV+ - ULMA - ARCHITECTURAL SOLUTIONS - with grating / polymer concrete / galvanised steel grate - image - 2
Slot drainage channel - EUROSELFV+ - ULMA - ARCHITECTURAL SOLUTIONS - with grating / polymer concrete / galvanised steel grate - image - 3
Slot drainage channel - EUROSELFV+ - ULMA - ARCHITECTURAL SOLUTIONS - with grating / polymer concrete / galvanised steel grate - image - 4
Slot drainage channel - EUROSELFV+ - ULMA - ARCHITECTURAL SOLUTIONS - with grating / polymer concrete / galvanised steel grate - image - 5
Slot drainage channel - EUROSELFV+ - ULMA - ARCHITECTURAL SOLUTIONS - with grating / polymer concrete / galvanised steel grate - image - 6
Add to favorites
Compare this product
Go to the ULMA - ARCHITECTURAL SOLUTIONS website for more information

Characteristics

Configuration
with grating, slot
Material
polymer concrete
*grid material
galvanised steel grate, cast iron grate
Applications
for public spaces, floor, patio
Color availability
beige, black, white
Level of traffic
for pedestrian area, light traffic
Other characteristics
rainwater, safety, galvanized, A15, C250, B125
Length

1,000 mm
(39 in)

Width

130 mm
(5 in)

Depth

95 mm, 125 mm, 145 mm
(3.74 in, 4.92 in, 5.71 in)

Description

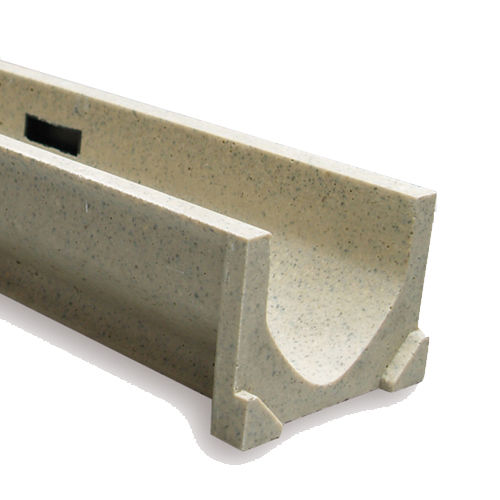

ULMA Linear Drainage Channel, type EUROSELFV+; External width 130mm, Internal width 100mm; Available with overall heights between 95 and 145mm to collect rainwater in 1 meter long units, optimized V-shape with self-cleaning effect; especially designed for channel runs with no longitudinal slope. Locking system consist of locking bar and screws.
