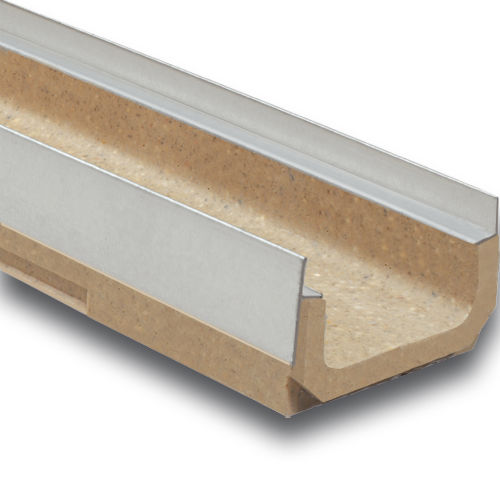

Drainage channel with grating M100K
slotpolymer concretecomposite

Drainage channel with grating - M100K - ULMA - ARCHITECTURAL SOLUTIONS - slot / polymer concrete / composite
Drainage channel with grating - M100K - ULMA - ARCHITECTURAL SOLUTIONS - slot / polymer concrete / composite
Drainage channel with grating - M100K - ULMA - ARCHITECTURAL SOLUTIONS - slot / polymer concrete / composite - image - 2
Drainage channel with grating - M100K - ULMA - ARCHITECTURAL SOLUTIONS - slot / polymer concrete / composite - image - 3
Drainage channel with grating - M100K - ULMA - ARCHITECTURAL SOLUTIONS - slot / polymer concrete / composite - image - 4
Drainage channel with grating - M100K - ULMA - ARCHITECTURAL SOLUTIONS - slot / polymer concrete / composite - image - 5
Drainage channel with grating - M100K - ULMA - ARCHITECTURAL SOLUTIONS - slot / polymer concrete / composite - image - 6
Add to favorites
Compare this product
Go to the ULMA - ARCHITECTURAL SOLUTIONS website for more information

Characteristics

Configuration
with grating, slot
Material
polymer concrete, composite
*grid material
galvanised steel grate, cast iron grate, stainless steel grate
Applications
for parking lot, roof, for shower
Color availability
beige
Level of traffic
light traffic, for pedestrian area
Other characteristics
rainwater
Length

1,000 mm
(39 in)

Width

130 mm
(5 in)

Depth

80 mm
(3.15 in)

Description

Polymer concrete Linear Drainage Channel ULMA, type M100K: External width 130mm; Internal width 100mm and overall height 80mm to collect rain water in 1 metre long units. Integrated galvanized steel edges for lateral protection. Locking system consists of 2 screws per metre.
