Sports field drainage channel DP100.20
with gratingslotpolymer concrete

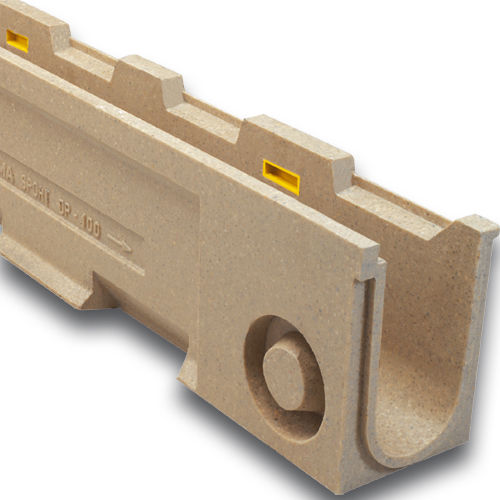

Sports field drainage channel - DP100.20 - ULMA - ARCHITECTURAL SOLUTIONS - with grating / slot / polymer concrete
Sports field drainage channel - DP100.20 - ULMA - ARCHITECTURAL SOLUTIONS - with grating / slot / polymer concrete
Sports field drainage channel - DP100.20 - ULMA - ARCHITECTURAL SOLUTIONS - with grating / slot / polymer concrete - image - 2
Sports field drainage channel - DP100.20 - ULMA - ARCHITECTURAL SOLUTIONS - with grating / slot / polymer concrete - image - 3
Sports field drainage channel - DP100.20 - ULMA - ARCHITECTURAL SOLUTIONS - with grating / slot / polymer concrete - image - 4
Sports field drainage channel - DP100.20 - ULMA - ARCHITECTURAL SOLUTIONS - with grating / slot / polymer concrete - image - 5
Sports field drainage channel - DP100.20 - ULMA - ARCHITECTURAL SOLUTIONS - with grating / slot / polymer concrete - image - 6
Add to favorites
Compare this product
Go to the ULMA - ARCHITECTURAL SOLUTIONS website for more information

Characteristics

Configuration
with grating, slot
Material
polymer concrete
*grid material
galvanised steel grate, cast iron grate, stainless steel grate
Applications
for swimming pool, for sports fields, for shower
Color availability
beige
Level of traffic
light traffic, for pedestrian area
Other characteristics
rainwater
Length

1,000 mm
(39 in)

Width

155 mm
(6 in)

Depth

235 mm
(9.25 in)

Description

Polymer concrete Linear Drainage Channel ULMA, type DP100.20: External width 155mm; Internal width 100mm and overall heights 235mm to collect rain water in 1 metre long units. Locking system consists of locking bar CS100 and screws, with polymer concrete stepped edges for lateral protection.
