Drainage channel with grating S350F
slotpolymer concretegalvanised steel grate

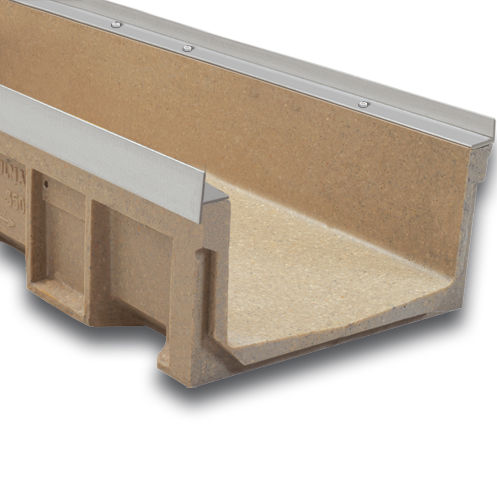

Drainage channel with grating - S350F - ULMA - ARCHITECTURAL SOLUTIONS - slot / polymer concrete / galvanised steel grate
Drainage channel with grating - S350F - ULMA - ARCHITECTURAL SOLUTIONS - slot / polymer concrete / galvanised steel grate
Drainage channel with grating - S350F - ULMA - ARCHITECTURAL SOLUTIONS - slot / polymer concrete / galvanised steel grate - image - 2
Drainage channel with grating - S350F - ULMA - ARCHITECTURAL SOLUTIONS - slot / polymer concrete / galvanised steel grate - image - 3
Drainage channel with grating - S350F - ULMA - ARCHITECTURAL SOLUTIONS - slot / polymer concrete / galvanised steel grate - image - 4
Drainage channel with grating - S350F - ULMA - ARCHITECTURAL SOLUTIONS - slot / polymer concrete / galvanised steel grate - image - 5
Add to favorites
Compare this product
Go to the ULMA - ARCHITECTURAL SOLUTIONS website for more information

Characteristics

Configuration
with grating, slot
Material
polymer concrete
*grid material
galvanised steel grate, cast iron grate, stainless steel grate
Applications
road, for parking lot, for airport
Color availability
beige
Level of traffic
for heavy traffic
Other characteristics
rainwater, for heavy loads, galvanized
Length

1,000 mm
(39 in)

Width

362 mm
(14 in)

Depth

210 mm
(8.27 in)

Description

Polymer concrete Linear Drainage Channel ULMA, type SM350F: External width 362mm; Internal width 300mm and overall height of 150mm to collect rain water in 1 metre long units. Safe locking system consists of eight bolts per LM; Integrated galvanized steel edges for lateral protection.
